Buy Bürkert Flow meter 8045 426499 Operating voltage (range): 18 - 36 V DC 1 pc(s)

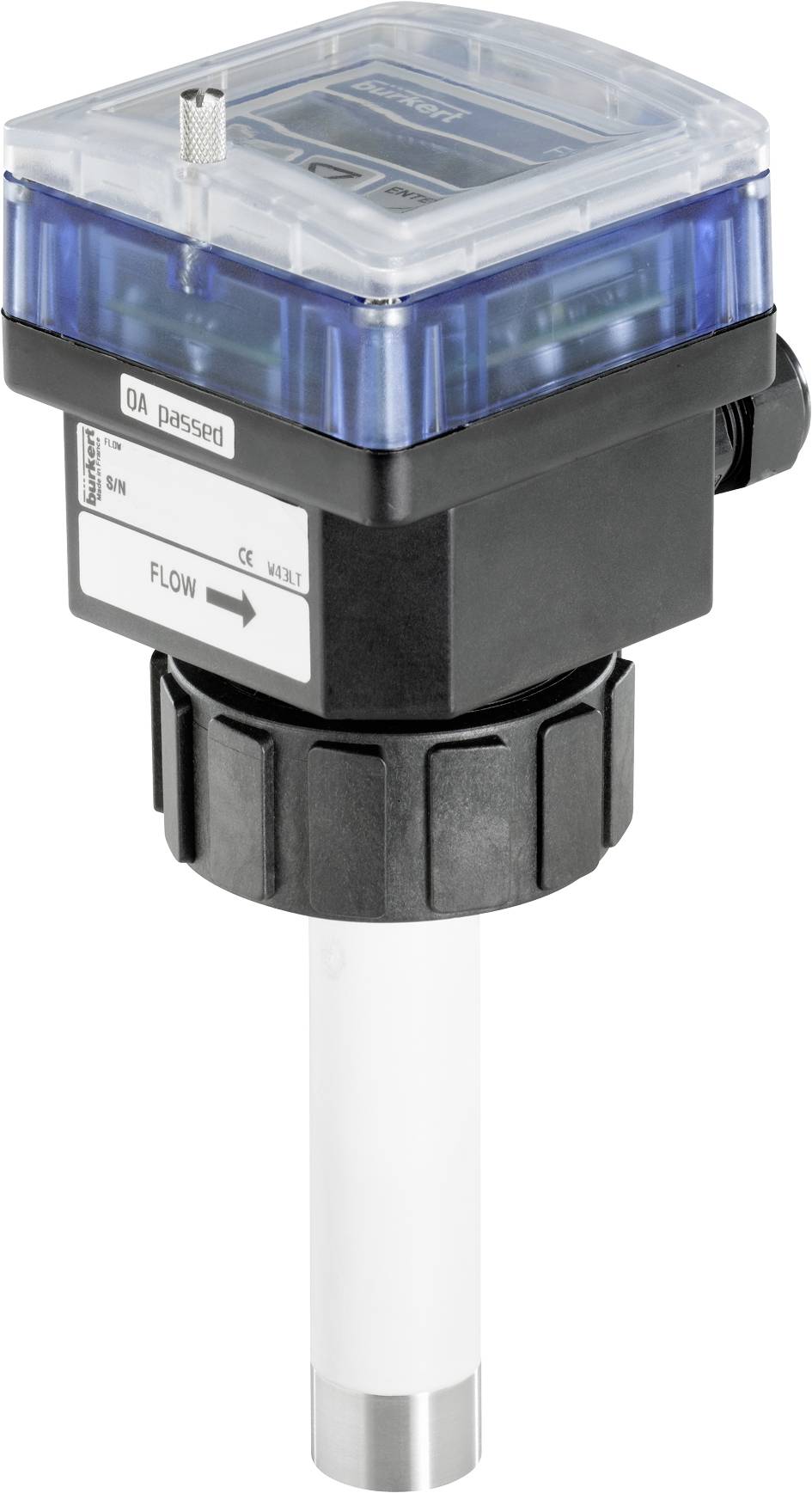

A digital flow sensor in a housing with a blue lid and white pipe, indicated with an arrow showing the flow direction.

Product type

Flow meter

Min. operating voltage

18 V DC

Max. operating voltage

36 V DC

Type

8045

Operating voltage

18 - 36 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Magnetic inductive flow meter

Sensor has no moving parts
Shows the flow rate as well as volume
Simulation of all outputs
CIP-enabled

Technical specifications

Connection (hose): G2 cap nut
Sensor design long
Supply voltage: filtered and controlled (3-wire), tolerance: ± 0.5%
With DC-polarity reversal protection
Power consumption? 300 mA
Digital input no
No relay output
Analog output current (A01) 4 - 20 mA, valley or source (depending on the wiring), 22 mA for error message, max. loop resistance: 1300? At 36 V DC, 1000? At 30 V DC, 700? At 24 V DC, 450? At 18 V DC
Ambient temperature -10 to +60 °C (operating) -20°C to +60°C (storage)
Relative humidity< 85%, not condensed
Height above sea level max. 2000 m
Pipe diameter DN06 to DN 400 (see type S020)
Measuring range from 0.2 to 10 m/s
Coolant Temperature See Pressure/Temperature chart in the data sheet, 0 to 80°C (depending on the fitting)
Liquid Pressure max. see pressure/temperature chart in the data sheet, PN10
Conductivity Min. 20 µS/cm
Measuring error (for measured value from 1 to 10 m/s) Teach-in ± 0.5% of the measured value, standard K-Factor ± 4% of the measured value
Linearity ± 0.5% of the measuring range transmission (10 m/s)
Repeatability ±0.25% of the measured value)

Product type: Flow meter

Type: 8045

Min. operating voltage: 18 V DC

Max. operating voltage: 36 V DC

Operating voltage: 18 - 36 V DC

Features: LED indicator

Connector: Cable gland

Outputs: Current (analogue)

Material: Polycarbonate (PC)

Material properties: fibreglass-reinforced

Sealant: FKM

Enclosure material: PVDF

Media temperature (min.): 0 °C

Max. media temperature: +80 °C

Max. operating pressure: 10 bar

Accuracy ±: 0.5 %

Weight: 0.860 kg

Min. ambient temperature: -10 °C

Max. ambient temperature: +60 °C

Length: 116 mm

Width: 88 mm

Height: 218 mm

Dim: (L x W x H) 116 x 88 x 218 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 625785 Bürkert Flow meter 8045 426499 Operating voltage (range): 18 - 36 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 625785 Bürkert Flow meter 8045 426499 Operating voltage (range): 18 - 36 V DC 1 pc(s)

Description

The flow meter is suitable for pipes with diameters from DN06 to DN 400 and liquids with a conductivity> 20 µS/cm. It has a backlit display, a keyboard and a 4-20 mA current output, a digital output (pulse output as a basic setting) and two meter.

This text is machine translated.

Features

Flow meter
Can be combined with fittings S020
Materials:
Case, cover, nut/seal polycarbonate (glass-fiber reinforced for housing)/NBR
Front film protective cover/Seal Polycarbonate/silicone
Screws/seal stainless steel/neoprene
Cable glands polyamide
Welded parts:
Sensor holder PVDF
Electrodes Stainless Steel 1.4404/316L
Seal FKM (FDA approval)
Pg Ring Stainless steel 1.4404/316L
Electrical Connections 2 cable glands M20 x 1.5
Recommended connection cable 0.5 to 1.5 mm² cross-section, shielded, 6...12 mm diameter (when using a cable pro cable gland or 4 mm diameter (when using two cable pro cable gland with incorrect reusable seal)
Sensor element electrodes
Protection class IP65, with a connected device and is already fixed cable glands and up to the stop shut, protective cover
Standards and approvals:
Emc: EN 61000-6-2, EN 61000-6-3.
Low-voltage EN 61010-1
3. The pressure in accordance with Article 3 of the Directive 97/23/CE (from the end of the measuring range 10 m/s)
Vibration EN 60068-2-6
Shock EN 60068-2-27
