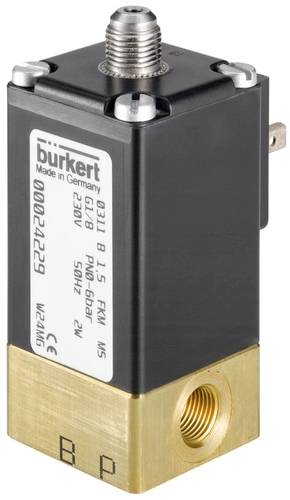

Image similar
Bürkert Magnetic valve 124627 0311 230 V Nominal width (details) 1.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
3/2-way solenoid valve without housing
- Vibration-resistant block screw-mounted coil
- Compact design
- Housing in brass and stainless steel with threaded connection
- This text is machine translated.
Technical specifications
- Material: Brass
- Seal material:FKM
- Nominal width 1.5 mm
- Line connection: Not present
- Special feature: Kern 0311-1015-740-00
- Voltage 230 volt
- Mains frequency: 50/-60 Hz.
- Missing attributes: Loose parts packed in bags
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 16
- Medium temperature (degree C) (min): -10
- 3/2-way; at rest output A de-energized
- Power consumption 8 watt
- Duty cycle (%): 100
- Opening time (msec) (max): 15
- Closing time (ms) (max): 20
- Opening time (ms) (min): 10
- Closing time (ms) (min): 15
- Product type
Magnetic valve
- Operating voltage
230 V
- Max. operating pressure
16 bar
- Enclosure material
Brass
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to 100 °C
- Manufacturer part #
124627
- Min. operating temperature
-10 °C
- Sealant
FKM
- Function
3/2-way
- Max. media temperature
100 °C
- Media temperature (min.)
-10 °C
- Nominal width
1.5 mm
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047862 Bürkert Magnetic valve 124627 0311 230 V Nominal width (details) 1.5 mm 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
