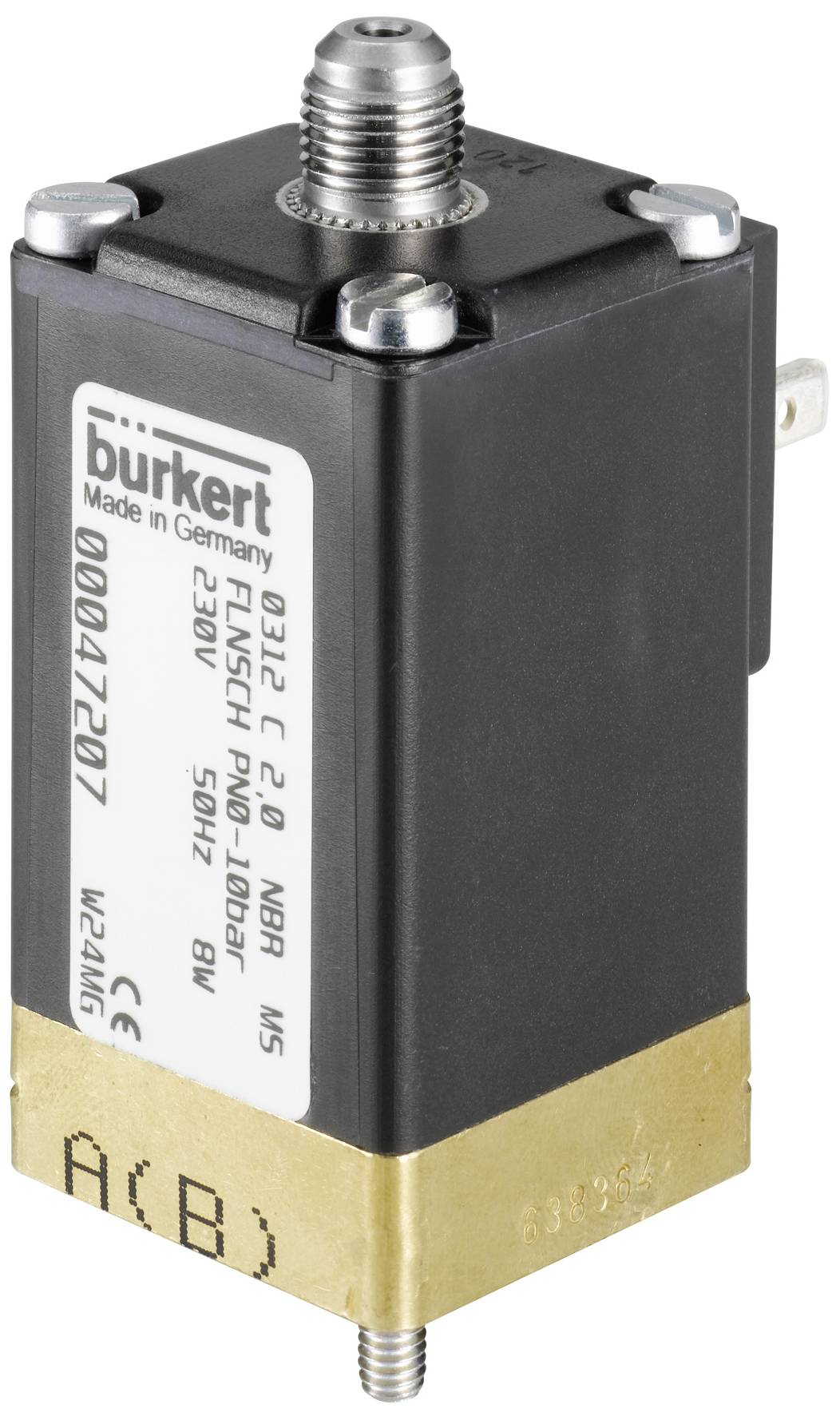

Image similar
Image similar
Bürkert Magnetic valve 125079 0312 24 V DC Circuit diagram Nominal width (details) 2.5 mm OFF (port 2 energised) 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
3/2-way solenoid valve; direct action
- Housing in brass and stainless steel with threaded connection
- This text is machine translated.
Technical specifications
- Material: Brass
- Seal material:FKM
- Nominal width 2.5 mm
- Line connection: Flange image: Bürkert KL-NR.001-01-06 (32x32)
- Special feature: Device socket type 2518 (00314802), without switching, 3-pin, 0-250 V AC/DC
- Voltage 24 volt
- Frequency: Direct current
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 6
- Medium temperature (degree C) (min): -10
- Operation: 3/2-way; in rest position, output B pressure-applied
- Power consumption 8 watt
- QNN VALUE (L/MIN): 175
- Duty cycle (%): 100
- Opening time (msec) (max): 20
- Closing time (ms) (max): 22
- KV VALUE (M*3/H): 0.160
- Opening time (ms) (min): 15
- Closing time (ms) (min): 10
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
6 bar
- Enclosure material
Brass
- Connection
Circuit diagram
- Media temperature (range)
-10 up to 100 °C
- Manufacturer part #
125079
- Sealant
FKM
- Function
3/2-way
- Max. media temperature
100 °C
- Media temperature (min.)
-10 °C
- Nominal width
2.5 mm
- QNn value
175 l/min
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- Operating principle
OFF (port 2 energised)
- KV value
0.160 m³/h
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047708 Bürkert Magnetic valve 125079 0312 24 V DC Circuit diagram Nominal width (details) 2.5 mm OFF (port 2 energised) 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
