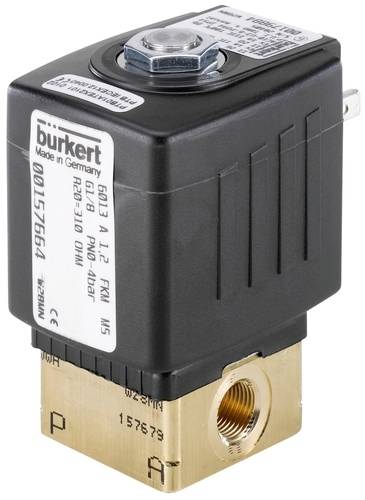

Bürkert Magnetic valve 141324 6013 230 V G 1/4 sleeve Nominal width (details) 6 mm 2/2 way 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2/2-way solenoid valve, direct action
- Direct-acting and compact valve up to nominal width DN 6.0
- Vibration-resistant, screwed coil system
- Explosion-proof versions
- Energy-saving kick and drop designs available
Technical specifications
- Coil (Kern) - spool size 32 mm
- Material: Brass
- Seal material:FKM
- Nominal width 6 mm
- Line connection G 1/4 sleeve
- Voltage 230 volt
- Mains frequency: 50/-60 Hz.
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 1
- Medium temperature (degree C) (min): -10
- 2/2-way; closed at rest
- Power consumption 8 watt
- Duty cycle (%): 100
- Opening time (msec) (max): 20
- Closing time (ms) (max): 30
- KV VALUE (M*3/H): 0.550
- Pressure (max) at gas: 1
- Product type
Magnetic valve
- Operating voltage
230 V
- Max. operating pressure
1 bar
- Enclosure material
Brass
- Connection
G 1/4 sleeve
- Media temperature (range)
-10 up to 100 °C
- Manufacturer part #
141324
- Sealant
FKM
- Function
2/2-way
- Max. media temperature
100 °C
- Media temperature (min.)
-10 °C
- Nominal width
6 mm
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- Operating principle
2/2 way
- KV value
0.550 m³/h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3046893 Bürkert Magnetic valve 141324 6013 230 V G 1/4 sleeve Nominal width (details) 6 mm 2/2 way 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046893 Bürkert Magnetic valve 141324 6013 230 V G 1/4 sleeve Nominal width (details) 6 mm 2/2 way 1 pc(s)
Description
Valve 6013 is a direct-acting hitch valve. Plug and core guide pipe are welded to increase pressure and leakage protection. Depending on the application, different sealing material combinations are available. A Bürkert-specific flange design (SFB) allows the space-saving assembly of valves on a multi-connection plate. Kick and drop coils are available to reduce electrical power consumption during operation.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
