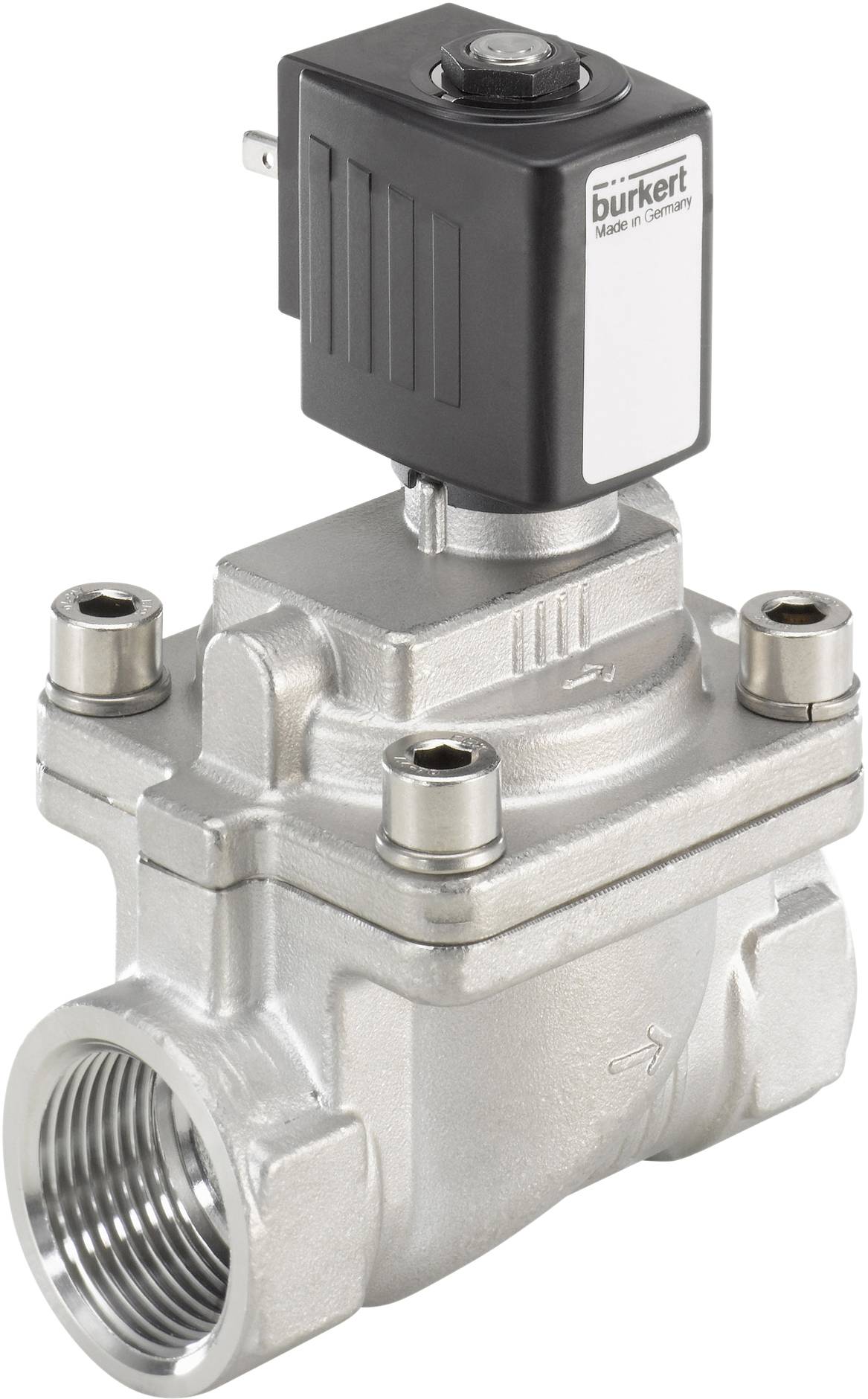

Bürkert Magnetic valve 246484 6281 230 V AC G 1 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnetic valve
- Operating voltage
230 V AC
- Max. operating pressure
16 bar
- Enclosure material
Stainless steel
- Connection
G 1
- Media temperature (range)
-30 up to 90 °C
- Manufacturer part #
246484
- Operating pressure (min.)
0.2 bar
- Max. flow
13000 l/min
- Function
2/2-way
- Max. media temperature
90 °C
- Media temperature (min.)
-30 °C
- Medium
Gases
Water
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2482606 Bürkert Magnetic valve 246484 6281 230 V AC G 1 1 pc(s)
Description
The valve 6281 is a servo-controlled diaphragm valve of the S.EV series. A minimum differential pressure is always required to operate the valve. Depending on the applications, different membrane materials and modes of action are available. The standard measuring housing meets all European drinking water requirements. For other markets, uncut brass is available. The housing range is rounded off by a stainless steel version. All coils can be supplied with an electronic power reduction to reduce energy requirements. The valve can be supplied with a manual actuation for easy maintenance and commissioning. In conjunction with a plug in accordance with DIN EN 175301-803 Form A, the valves fulfill the IP65 degree of protection – in conjunction with a NEMA 4X stainless steel housing.
This text is machine translated.
This text is machine translated.
Features
- Servo-controlled diaphragm valve up to nominal diameter DN50
- Vibration-proof, centrally screwed coil system
- Closed attenuated and quiet
- Service-friendly manual operation
- Explosion-protected versions
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
