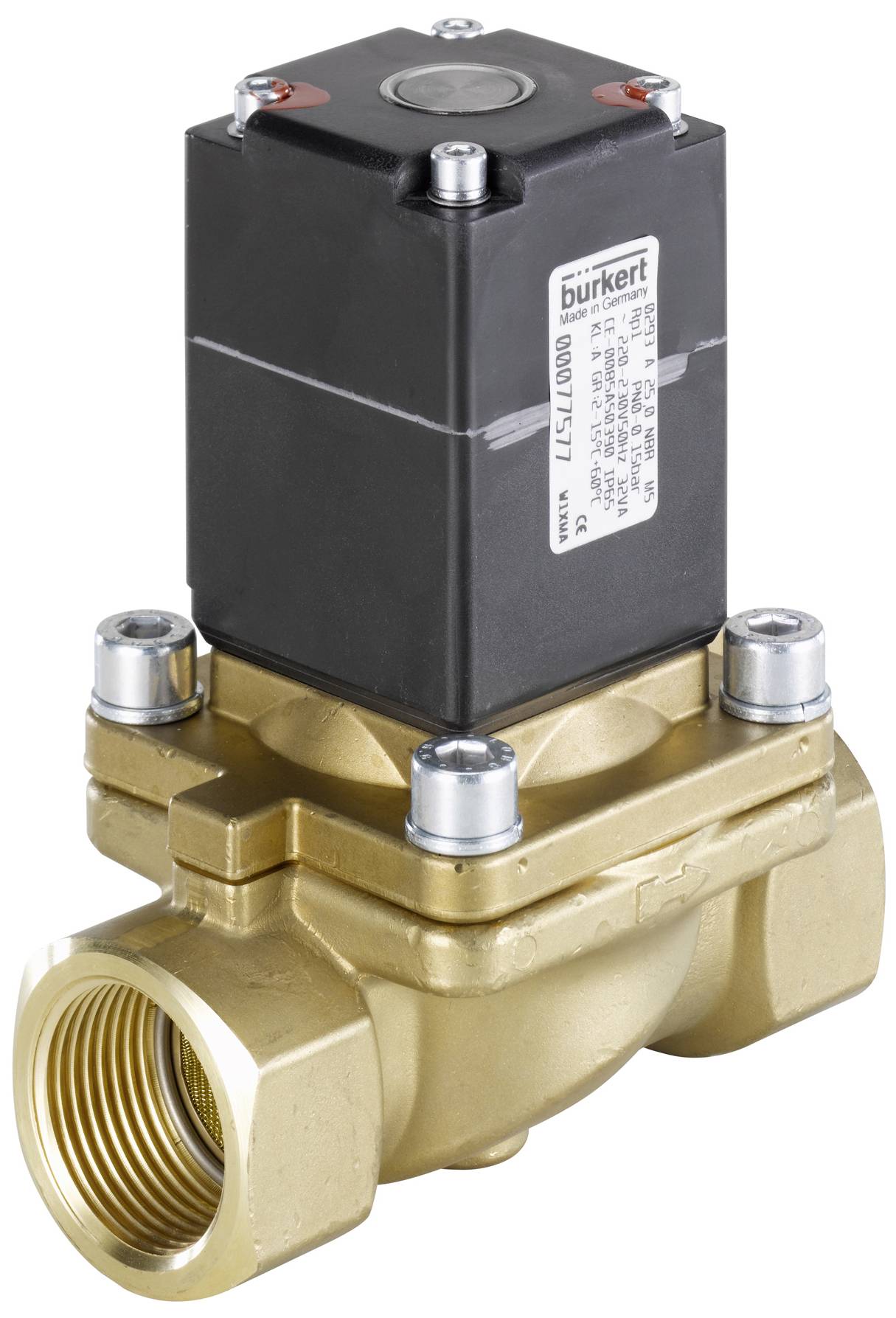

Bürkert Magnetic valve 279479 0293 230 V G 3/4 Nominal width (details) 20 mm OFF/NC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2/2-way solenoid valve; direct action
- Gas valve with DVGW approval according to EN 161, class B
- Compact design
- Max. DN25 and 150 mbar
- Brass casing
- Dust strainer in the inlet
Technical specifications
- Sealing Material - Seat Seal Material Category: Elastomers
- Sealing Material - Seat Seal Material: NBR (Nitrile rubber)
- Sealing material - external sealing Material: NBR (nitrile rubber)
- Pressure & Temperature - Temperature Medium min -15 °C.
- Pressure & Temperature - Temperature Medium max. 60 °C.
- Pressure & temperature - ambient temperature min: -15 °C.
- Pressure & temperature - temperature Surroundings max. 60 °C
- Pressure & temperature - nominal pressure at least 0 bar
- Pressure & temperature - Backpressure proof design: No.
- Pressure & Temperature - nominal pressure max (liquid): 0.15 bar
- Pressure & temperature - rated pressure max (gas): 0.15 bar
- Electrical connection - Device plug in the range of supply: Enclosed
- Electrical connection - Device socket Art. No. - Type: 00008376 - 2508
- Electrical connection - Electrical connection Type: Plug picture Form A according to DIN EN 175301-803
- Electrical connection - Electrical connection Position: In flow direction left
- Electrical connection - Electrical connection Number of contacts: 2 + protective conductor
- Equipment characteristics - installation length 100 mm
- Equipment characteristics - main valve operating principle: Seat valve
- Device features - switching time opening max.: 150 ms
- Features - switching time includes max.: 250 ms
- Device properties - rated mode/duty cycle: 100%
- Equipment characteristics - valve design: Complete valve
- Equipment characteristics - flow: Over seat
- Device properties - Vacuum version: No.
- Device features - Drive type: Lifting anchor
- Device properties - operation: Direct action
- Device Properties - Media Separation: No.
- Device features - switching function: On/off
- Equipment features - open switching time at least 120 ms
- Features - switching time close at least 130 ms
- Device Properties - Analysis Execution: No.
- Equipment properties - Valve setting Opening time: No.
- Equipment properties - Valve setting Closing time: No.
- Equipment properties - Oil burner valve: No.
- Device Properties - Steam Type: No.
- Equipment properties - Main valve with integrated screen: Yes
- Nominal width (kV value) - QNn value (gas): 5,400 l/min.
- Nominal width (kV value) - main valve nominal width 1 (P) (mm): 20 mm
- Nominal width (kV value) - kV Water value: 5 m3/h.
- Nominal width (kV value) - Main valve nominal width 1 (inch): 3/4 inch
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 Thread name: 3/4
- Process/cable connection - cable connection 1 Thread type: G.
- Process/line connection – line connection 2 type: Internal thread
- Process/cable connection - cable connection 2 Thread type: G.
- Process/cable connection - cable connection 2 Thread name: 3/4
- Protection class IP rating (max. for suitable connection) IP65
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 230 V
- Voltage - voltage max. / nominal voltage 230 V
- Voltage - AC voltage: Yes
- Voltage - DC voltage: Yes
- Voltage - voltage tolerance positive: 10%
- Voltage - voltage tolerance negative: 10%
- Coil (Kern) - spool size 49 mm
- Coil (Kern) - Coil wiring Overvoltage protection: Suppressor diode
- Coil (Kern) - Coil Switching Rectifier: Yes
- Coil (Kern) - Coil arrangement Pole protection: Yes
- Coil (Kern) - Coil Switching Free-wheeling diode: Yes
- Coil (Kern) - low-noise version: Yes
- Coil (Kern) - coil type: Block screwed
- Coil (Kern) - Material coil (envelope): EP (epoxy resin)
- Coil (Kern) - Thermal insulation class of the drive: H
- Coil (Kern) - starting power AC:100 V
- A
- Coil (Kern) - part Kern in contact with medium Material: Stainless steel
- Coil (Kern) - part that is in contact with the medium Plug material: Stainless steel
- Coil (Kern) – rated DC 100 W.
- Coil (Kern) - Reduced power DC 9 W.
- Coil (Kern) – rated AC 9 V
- A
- Coil (Kern) - sliding ring material: PTFE (polytetrafluorethylene)
- Coil (Kern) - damping disc Material: NBR (Nitrile rubber)
- Materials - main valve material in contact with medium: Brass
- Operating principle - fluid line connection Number: 2
- Operation - Valve function Number of switching positions: 2
- Operation - Valve function: A - closed at rest - pressure connection 1 (P/NC)A - closed at rest - pressure connection 1 (P/NC)
- Operation - Manual operation: No.
- Approvals - nominal power 100 W
- Approval type DVGW
- Type of authorization: GMO
- Voltage frequency 50/60 Hz
- Product type
Magnetic valve
- Operating voltage
230 V
- Max. operating pressure
0 bar
- Enclosure material
Brass
- Connection
G 3/4
- Operating temperature
-15 °C (min)
- Media temperature (range)
-15 up to 60 °C
- Manufacturer part #
279479
- Operating pressure (min.)
0 bar
- Min. operating temperature
-15 °C
- Sealant
Nitrile butadiene rubber
- Function
2/2-way
- Max. media temperature
60 °C
- Media temperature (min.)
-15 °C
- Medium
Gases
- Nominal width
20 mm
- Length
100 mm
- QNn value
5.400 l/min
IP65
- Max. ambient temperature
60 °C
- Min. ambient temperature
-15 °C
- Operating principle
OFF/NC
- KV value
5 m³/h
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047377 Bürkert Magnetic valve 279479 0293 230 V G 3/4 Nominal width (details) 20 mm OFF/NC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047377 Bürkert Magnetic valve 279479 0293 230 V G 3/4 Nominal width (details) 20 mm OFF/NC 1 pc(s)
Description
Type 293 switches from zero bar without pressure difference. The valve is preferably suitable for switching flammable gases with low pressures. The direct-acting through-magnet valve is supplied in mode A. It is closed without current. When shifting, the magnet core is tightened against a spring and opens the valve. A screen is installed in the inlet. At nominal diameter 25 <, a dirt trap that is accessible for maintenance purposes = 500 µm, for example our type TFU001, must be installed in front of the valve.
