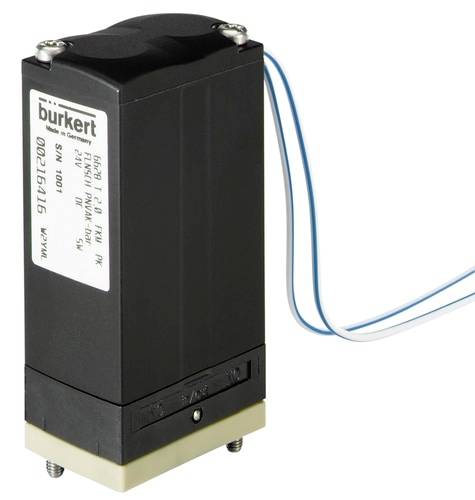

Bürkert Magnetic valve 307449 6628 24 V G 1/8 sleeve Nominal width (details) 3 mm Multi-purpose valve 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
22mm solenoid valve with medium separation
- 22 mm Compact construction upto nominal width 3.0
- Separation membrane for high chemical resistance
- Effectiveness NC, NO and 3-way universal
- Return pressure sealed thanks to the tipping principle
- Minimum internal volume with good flushing
Technical specifications
- Material: PEEK
- Seal material: EPDM
- Nominal width 3 mm
- Line connection G 1/8 sleeve
- Special feature: With manual actuation
- Voltage 24 volt
- Frequency: Direct current
- Electrical connection: Plug diagram of form B according to industry standard
- Missing attributes: Suitable for use with food, materials in contact with the media are compliant with FDA as per manufacturer's declaration
- Medium temperature (degree C) (max): 55
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 2
- Medium temperature (degree C) (min): -10
- 3/2-way; can be used universally
- Power consumption 5 watt
- Pressure (bar) (min): -1
- QNN VALUE (L/MIN): 180
- Duty cycle (%): 100
- KV VALUE (M*3/H): 0.17
- TOTYPE 25
- TYP: 25
- Product type
Magnetic valve
- Operating voltage
24 V
- Max. operating pressure
2 bar
- Enclosure material
PEEK
- Connection
G 1/8 sleeve
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to 55 °C
- Manufacturer part #
307449
- Operating pressure (min.)
-1 bar
- Min. operating temperature
-10 °C
- Sealant
EPDM
- Function
3/2-way
- Max. media temperature
55 °C
- Media temperature (min.)
-10 °C
- Medium
Corrosive substances
- Nominal width
3 mm
- Width
22 mm
- QNn value
180 l/min
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- Operating principle
Multi-purpose valve
- KV value
0.17 m³/h
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047240 Bürkert Magnetic valve 307449 6628 24 V G 1/8 sleeve Nominal width (details) 3 mm Multi-purpose valve 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047240 Bürkert Magnetic valve 307449 6628 24 V G 1/8 sleeve Nominal width (details) 3 mm Multi-purpose valve 1 pc(s)
Description
Direct-acting media-separated 2/2- or 3/2-way rocker solenoid valve for controlling aggressive liquids and gases in medical analysis technology, the food industry, as well as the chemical industry during dosing, filling, mixing and distribution. The Medium is in contact with the casing and sealing material exclusively through the separating membrane. With the new TwinPower actuator, robust screw connection and 22 mm width, this valve meets the highest requirements. Thanks to the proven rocker technology, it is characterized by full back pressure tightness, good flushing and low internal volume. The Type 6628 is available in different technical designs and offers a perfect adaptation to the fluid application via different fluid housing options.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
