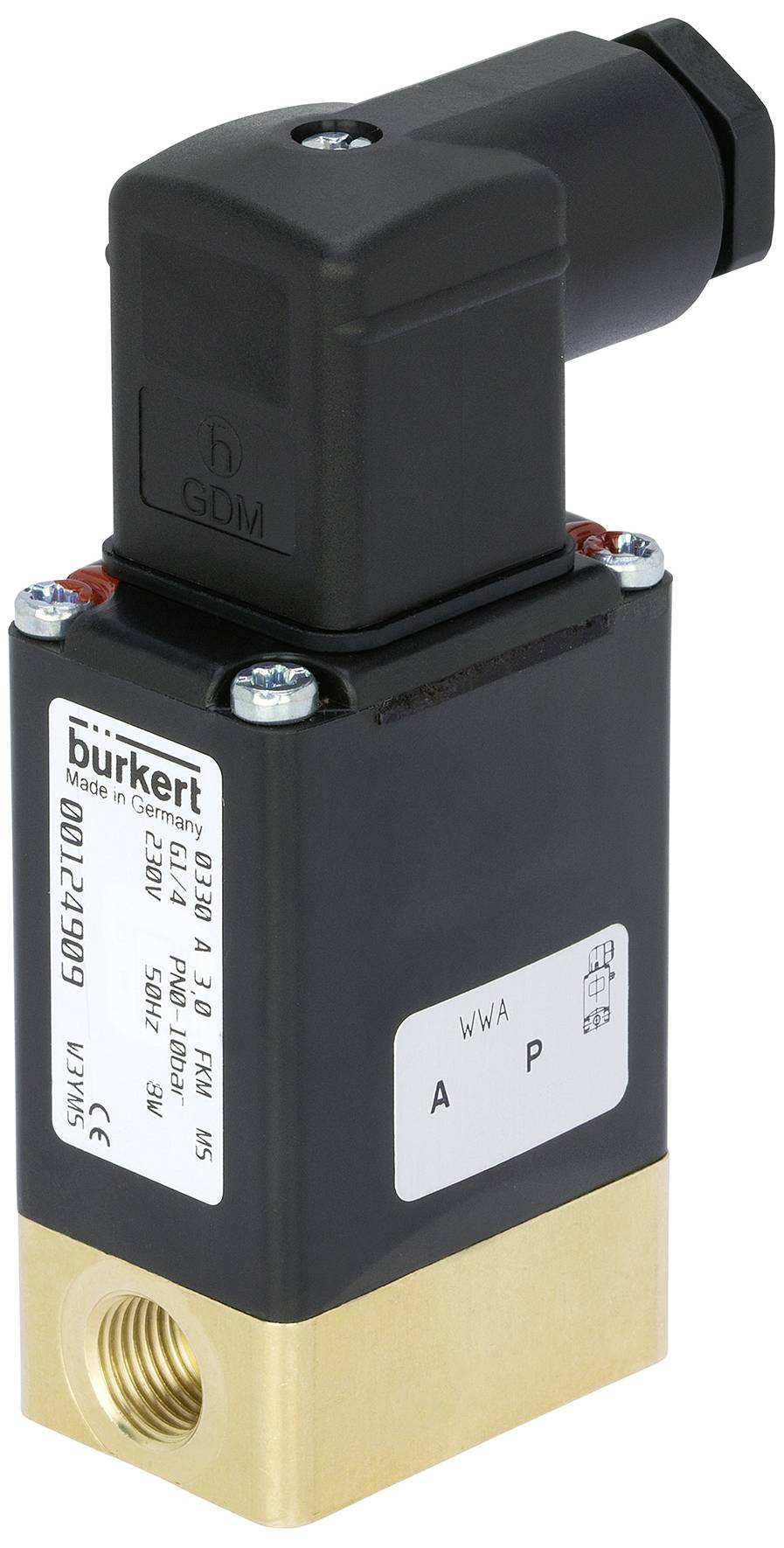

Bürkert Magnetic valve 327514 0330 24 V DC Nominal width (details) 3 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
3/2-way solenoid valve; direct action
- Direct-acting, media-separated valve up to nominal diameter DN 5
- Maintenance-free folding anchor technology
- Vibration-resistant, block screw-mounted coil system
- Service-friendly, robust hand operation
- Explosion-proof versions
Technical specifications
- Material: Brass
- Seal material:FKM
- Nominal width 3 mm
- Line connection NPT 1/4 sleeve
- Special feature: Device socket type 2509
- Voltage 24 volt
- Frequency: Direct current
- Missing attributes: UL(UL-listed)-approval
- Medium temperature (degree C) (max): 90
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 6
- 3/2-way mixing valve
- Power consumption 8 watt
- QNN VALUE (L/MIN): 150
- Duty cycle (%): 100
- Opening time (msec) (max): 20
- Closing time (ms) (max): 20
- KV VALUE (M*3/H): 0.14
- Opening time (ms) (min): 10
- Closing time (ms) (min): 10
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
6 bar
- Enclosure material
Brass
- Media temperature (range)
90 °C (max)
- Manufacturer part #
327514
- Sealant
FKM
- Function
2/2-way
- Max. media temperature
90 °C
- Medium
Corrosive substances
- Nominal width
3 mm
- QNn value
150 l/min
- Max. ambient temperature
55 °C
- KV value
0.14 m³/h
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047369 Bürkert Magnetic valve 327514 0330 24 V DC Nominal width (details) 3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047369 Bürkert Magnetic valve 327514 0330 24 V DC Nominal width (details) 3 mm 1 pc(s)
Description
Valve 0330 is a direct-acting, media-separated hinged valve. It is available in 3/2- and 2/2-way versions. As 3/2-way version it can be used as distributor or mixing valve. Depending on the applications, different membrane materials and modes of operation are available. Housing offerings include brass, stainless steel, and polypropylene. The coils are crimped with a chemically high-resistance epoxy. Since the coil system is separated from the Medium by a diaphragm, the valve is particularly suitable for critical media such as aggressive acids and alkalis. The 0330 is equipped with manual operation for commissioning and testing. To reduce the power requirement, all coils can be supplied with an electronic power reduction or as a pulse version. The switching state can be sent via a position feedback signal as binary or NAMUR signal.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
