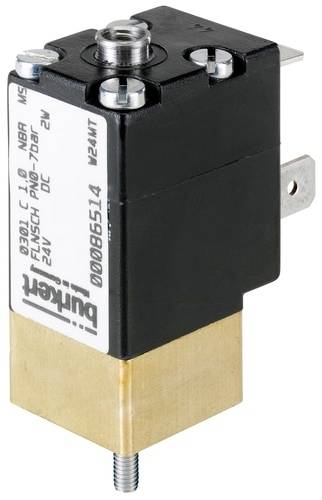

Bürkert Magnetic valve 55941 0301 24 V DC Flange Nominal width (details) 1.6 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
3/2-way solenoid valve; direct action
- Vibration-resistant block screw-mounted coil
- Small compact design
- Housing in brass and stainless steel with Bürkert-Flanch SFB
- This text is machine translated.
Technical specifications
- Material: Polyamide
- Seal material NBR
- Nominal width 1.6 mm
- Line connection: Flange image concentric KL.-nr.001-01-04
- Voltage 24 volt
- Frequency: Direct current
- Medium temperature (degree C) (max): 90
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 6
- Medium temperature (degree C) (min): -10
- 3/2-way; at rest output A de-energized
- Power consumption 4 watt
- QNN VALUE (L/MIN): 65
- Duty cycle (%): 100
- KV VALUE (M*3/H): 0.060
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
6 bar
- Enclosure material
Brass
- Connection
Flange
- Media temperature (range)
-10 up to 90 °C
- Manufacturer part #
55941
- Sealant
NBR
- Function
3/2-way
- Max. media temperature
90 °C
- Media temperature (min.)
-10 °C
- Nominal width
1.6 mm
- QNn value
65 l/min
- Max. ambient temperature
55 °C
- KV value
0.060 m³/h
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047863 Bürkert Magnetic valve 55941 0301 24 V DC Flange Nominal width (details) 1.6 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047863 Bürkert Magnetic valve 55941 0301 24 V DC Flange Nominal width (details) 1.6 mm 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
