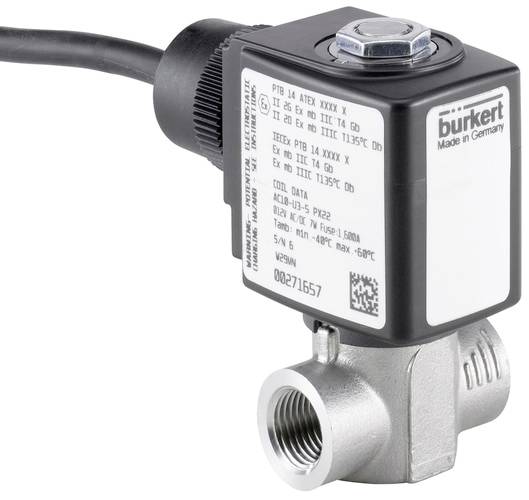

Image similar
Bürkert Piston valve 380820 6240 24 V G1/2 sleeve Nominal width (details) 12 mm OFF/NC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2/2-way servo solenoid valve
- Servo-controlled and compact piston valve up to nominal diameter DN 13; vibration-proof, screwed-on coil system; increased leak-proof by welded core guide tube; safe opening by means of a permanently coupled piston system; explosion-protected versions
Technical specifications
- Coil size 42 mm
- Product type
Piston valve
- Operating voltage
24 V
- Enclosure material
Stainless steel
- Connection
G1/2 sleeve
- Manufacturer part #
380820
- Sealant
PCTFE
FKM
- Function
2/2-way
- Medium
Gases
- Nominal width
12 mm
- Features
Sleeve
- Operating principle
OFF/NC
Documents & Downloads
Datasheet
Datasheet 2351910 Bürkert Piston valve 380820 6240 24 V G1/2 sleeve Nominal width (details) 12 mm OFF/NC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2351910 Bürkert Piston valve 380820 6240 24 V G1/2 sleeve Nominal width (details) 12 mm OFF/NC 1 pc(s)
Description
Valve 6240 is a servo-controlled piston valve. Plug and core guide tube are welded together to increase pressure and leak resistance. Depending on the application, different seal material combinations are available. Shape and surface quality of the housing allow maximum flow values. The coils are repressed with chemically highly resistant epoxy. An optional mechanical bearing increases the running time for dry gases. In conjunction with a plug in accordance with DIN EN 175301-803 Form A, the valves comply with protection class IP65. Stainless steel valves meet NEMA 4X.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
