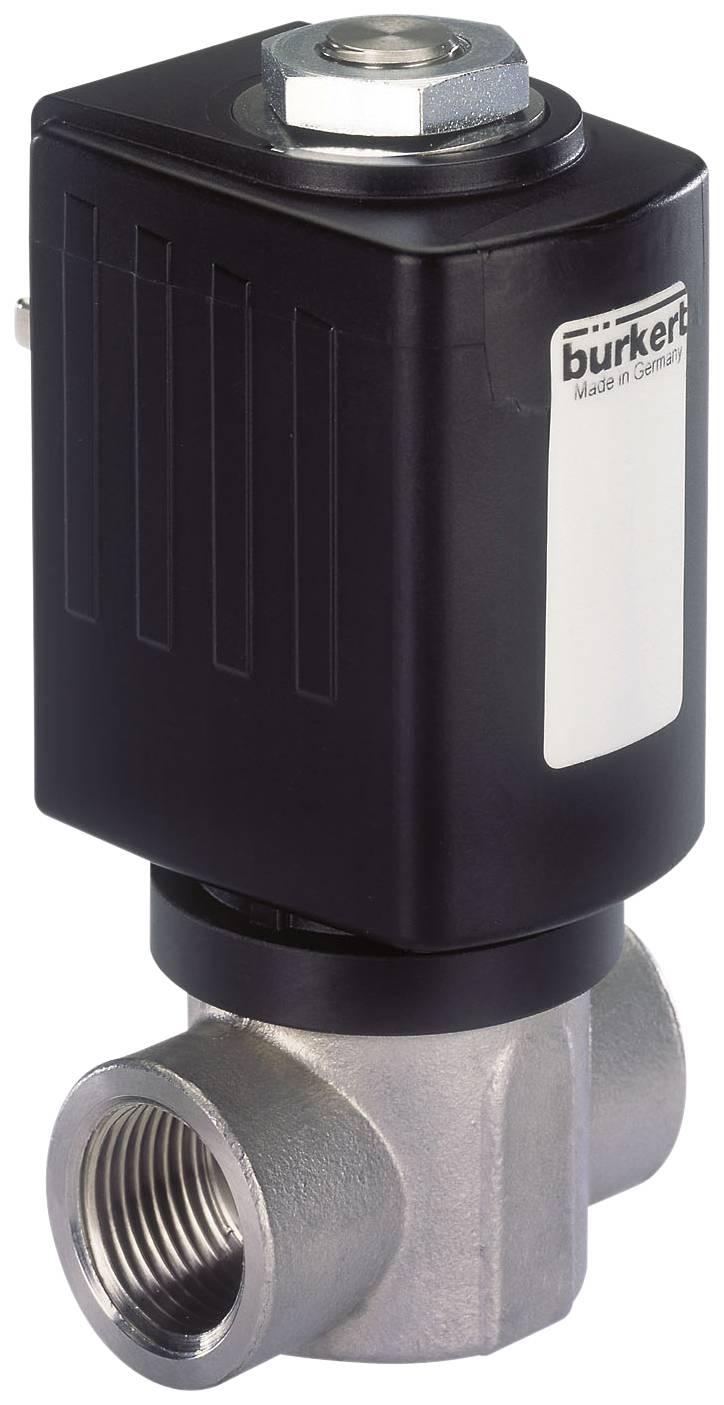

Bürkert Plunger valve 227982 6027 24 V G 1/2 Nominal width (details) 12 mm Direct action 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2/2-way solenoid valve
- Direct-acting, powerful valve up to nominal diameter DN13; vibration-proof, screw-on coil system; increased leak-proof by welded core guide tube; explosion-protected versions; high-pressure versions for gases and liquids
Technical specifications
- Drive type: Hubanker
- Main valve Operating principle: Seat valve
- Switching function: On/off
- Fluid Line Connection Number: 2
- Valve function Number of switch positions: 2
- Flow: Above seat
- Nominal pressure max. (gas): 2 bar
- Nominal pressure max. (liquid): 1.2 bar
- Valve seat material: Stainless steel
- AC voltage: Yes
- Rated output: 16 W
- Coil type: Plugged
- Coil material (covering): EP (epoxy resin)
- Coil size 42 mm
- Open switching time: 20 ms - 30 ms
- Switching time close: 50 ms - 80 ms
- Valve construction: Valve complete
- Switch-on power AC 105 VA
- Voltage frequency 50 Hz
- Product type
Plunger valve
- Operating voltage
24 V
- Max. operating pressure
2 bar
- Enclosure material
Stainless steel
- Connection
G 1/2
- Operating medium
Liquid;Gas
- Media temperature (range)
-40 up to +180 °C
- Manufacturer part #
227982
- Operating pressure (min.)
0 bar
- Sealant
PTFE
PEEK
- Function
2/2-way
- Weight
0.81 kg
- Max. media temperature
+180 °C
- Media temperature (min.)
-40 °C
- Medium
Gases
- Nominal width
12 mm
- Length
55 mm
IP65
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-40 °C
- Operating principle
Direct action
- KV value
2
Documents & Downloads
Datasheet
Datasheet 2351002 Bürkert Plunger valve 227982 6027 24 V G 1/2 Nominal width (details) 12 mm Direct action 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2351002 Bürkert Plunger valve 227982 6027 24 V G 1/2 Nominal width (details) 12 mm Direct action 1 pc(s)
Description
Valve 6027 is a direct acting lift anchor valve. Plug and core guide tube are welded together to increase pressure and leak resistance. Depending on the application, different seal material combinations are available. The coils are repressed with chemically highly resistant epoxy. An optional mechanical bearing increases the running time for dry gases. Special sealing techniques are used for high-pressure applications. Together with a device socket according to DIN EN 175301-803 Form A, the valves fulfill the protection class IP65. Stainless steel valves meet NEMA 4X.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
