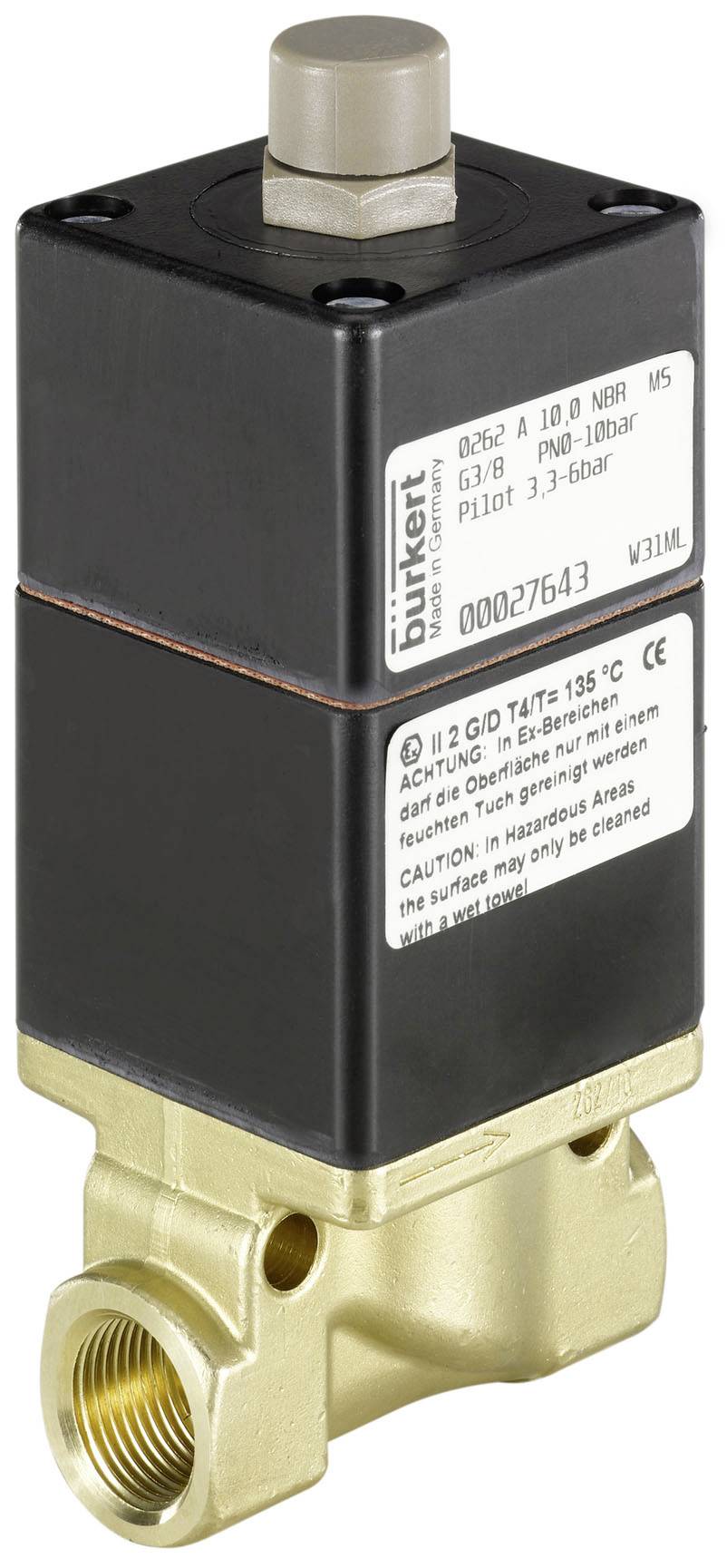

Bürkert Pneumatic valve 0262 26287 5 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Brass
- Seal material NBR
- Nominal width 10 mm
- Line connection G 3/8 sleeve
- Special feature: EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 GB / Ex h IIIC T135°C DB
- Medium temperature (degree C) (max): 90
- Ambient temperature (degree C) (max): 90
- Pressure (bar) (max): 5
- Medium temperature (degree C) (min): -10
- 2/2-way; closed at rest
- Control pressure (min): 2
- Control pressure (max): 6
- KV VALUE (M*3/H): 1.0
- Drive: Standard
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
26287
- Max. operating pressure
5 bar
- Pressure range
5 bar (max)
- Pipe Ø
10 mm
- Control pressure (max.)
6 bar
- Control pressure (min.)
2 bar
- Type
262
- Max. ambient temperature
90 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047630 Bürkert Pneumatic valve 0262 26287 5 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047630 Bürkert Pneumatic valve 0262 26287 5 bar (max) 1 pc(s)
Description
The externally controlled valve consists of a pneumatically actuated diaphragm drive and a 2-way valve housing. The double spindle seal ensures a high leak tightness and a long service life.
The compact drive housing made of acid and alkali-resistant plastic is ideal for custom multiple block designs.
This low-maintenance and robust valve can be supplemented individually by various accessories.
