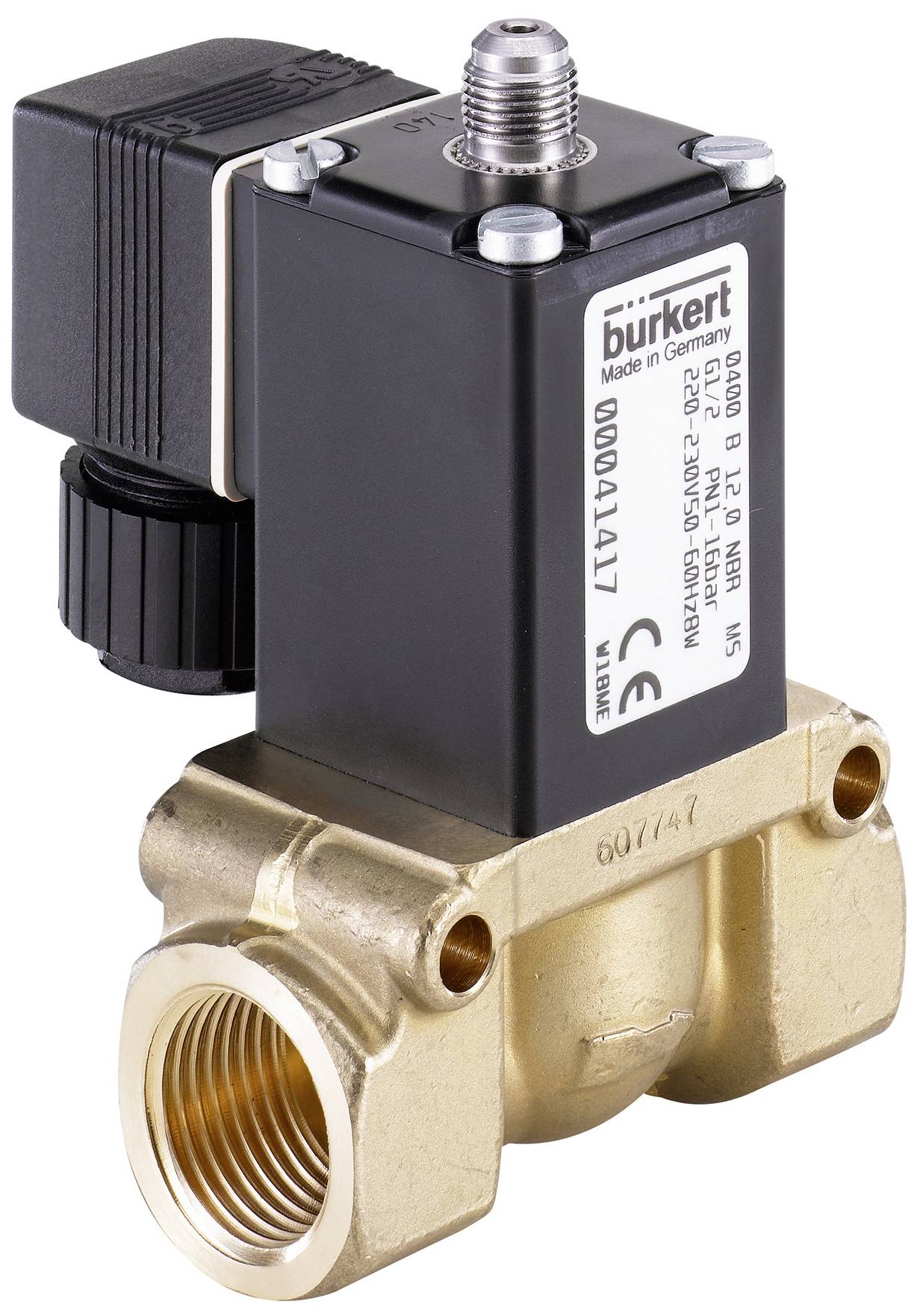

Bürkert Pneumatic valve 0400 41417 1 up to 16 bar 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Material: Brass
- Seal material NBR
- Nominal width 12 mm
- Line connection G 1/2 sleeve
- Special feature: Device socket type 2518 (00314802), without switching, 3-pin, 0-250 V AC/DC
- Direct voltage 220 - 230 volt
- Mains frequency: 50/-60 Hz.
- Medium temperature (degree C) (max): 90
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 16
- Medium temperature (degree C) (min): -10
- Operation: 2/2-way; open in rest position
- Power consumption 8 watt
- Pressure (bar) (min): 1
- QNN VALUE (L/MIN): 3600
- Duty cycle (%): 100
- Opening time (msec) (max): 60
- Closing time (ms) (max): 80
- Opening time (ms) (min): 50
- Closing time (ms) (min): 60
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
41417
- Max. operating pressure
16 bar
- Operating pressure (min.)
1 bar
- Pressure range
1 up to 16 bar
- Operating medium
Compressed air
- Pipe Ø
12 mm
- Max. power consumption
8 W
- Type
400
- Max. ambient temperature
55 °C
- UKCA
yes
