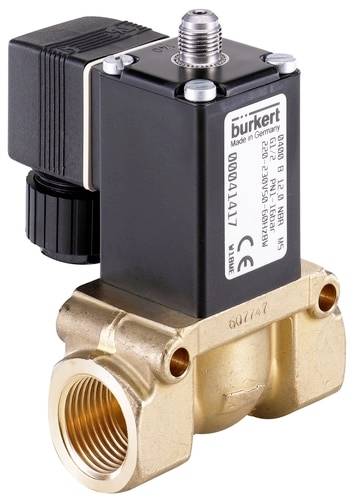

Image similar
Bürkert Pneumatic valve 0400 53685 1 up to 40 bar 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Material: Light metal
- Seal material:FKM
- Nominal width 6 mm
- Line connection G 1/4 sleeve
- Special feature: Device socket type 2518 (00314802), without switching, 3-pin, 0-250 V AC/DC
- Voltage 230 volt
- Mains frequency: 50/-60 Hz.
- Missing attributes: Structure for pressure range PN 40 bar
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 40
- Medium temperature (degree C) (min): -10
- Operation: 2/2-way; open in rest position
- Power consumption 8 watt
- Pressure (bar) (min): 1
- QNN VALUE (L/MIN): 720
- Duty cycle (%): 100
- Opening time (msec) (max): 60
- Closing time (ms) (max): 80
- Opening time (ms) (min): 50
- Closing time (ms) (min): 60
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
53685
- Max. operating pressure
40 bar
- Operating pressure (min.)
1 bar
- Pressure range
1 up to 40 bar
- Operating medium
Compressed air
- Pipe Ø
6 mm
- Packaging type
Carton
- Max. power consumption
8 W
- Type
400
- Max. ambient temperature
55 °C
- Weight
310 g
- UKCA
not relevant
