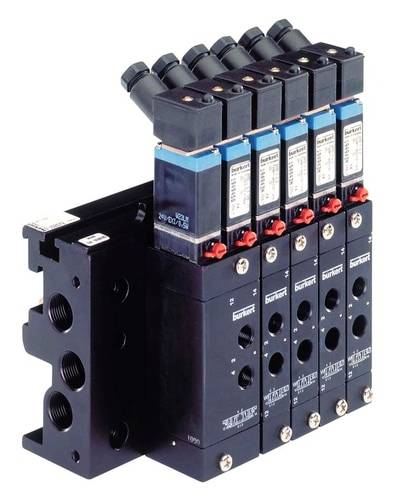

Image similar
Image similar
Bürkert Pneumatic valve 0450 162153 1 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal width 14 mm
- Line connection G 1/2 sleeve
- Special feature: Cable length 5000 mm
- Voltage 24 volt
- Frequency: DC and AC (AC/DC)
- Missing attributes: EPS 18 ATEX 1232 X / IECEx EPS 18.0110X, 2G MB T5 IIC / 2D MB 95°C IIIC, TUMg -40°C to 60°C, single mount
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 10
- Operation: 5/2-way; output 2 pressurized in rest position
- Pressure (bar) (min): 1
- QNN VALUE (L/MIN): 3300
- Duty cycle (%): 100
- Opening time (msec) (max): 15
- Closing time (ms) (max): 19
- Activation: Electromagnetic 32x32, air spring
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
162153
- Max. operating pressure
10 bar
- Operating pressure (min.)
1 bar
- Pressure range
1 up to 10 bar
- Operating medium
Compressed air
- Pipe Ø
14 mm
- Type
450
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
