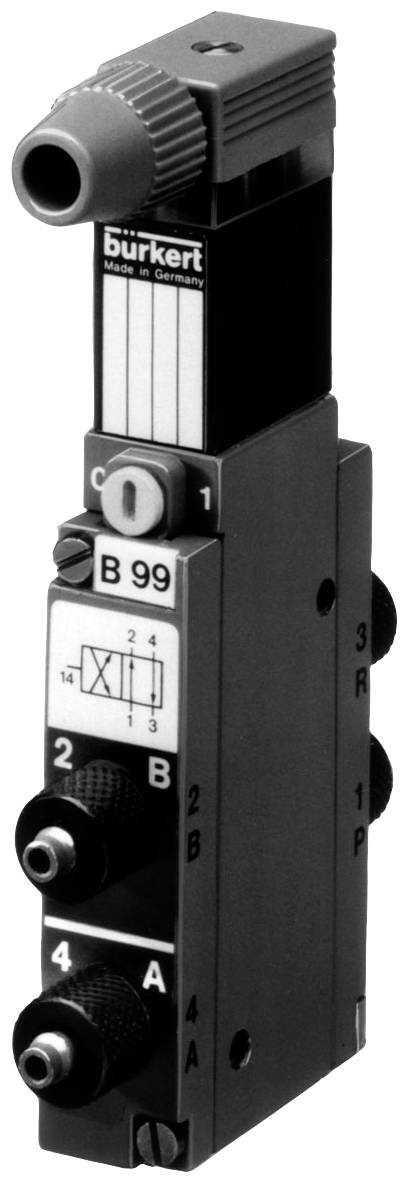

Bürkert Pneumatic valve 0470 17468 2 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Seal material NBR
- Nominal width 4 mm
- Special feature: With cable connection pointing downwards
- Voltage 24 volt
- Frequency: DC and AC (AC/DC)
- Missing attributes: Cable head mounted
- Medium temperature (degree C) (max): 50
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 10
- Medium temperature (degree C) (min): -10
- Operation: 4/2-way; pressure port 1 connected to output 2 at rest; output 4 vented
- Line connector 1: Flange image Bürkert module (type 0470)
- Line connection 2: Hose connection hose outer diameter 6mm
- Power consumption 2 watt
- Pressure (bar) (min): 2
- QNN VALUE (L/MIN): 300
- Duty cycle (%): 100
- Opening time (msec) (max): 30
- Closing time (ms) (max): 20
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
17468
- Max. operating pressure
10 bar
- Operating pressure (min.)
2 bar
- Pressure range
2 up to 10 bar
- Operating medium
Compressed air
- Pipe Ø
4 mm
- Max. power consumption
2 W
- Type
470
- Max. ambient temperature
55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047672 Bürkert Pneumatic valve 0470 17468 2 up to 10 bar 1 pc(s)
