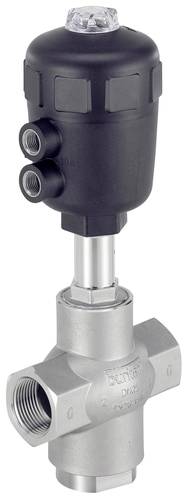

Bürkert Pneumatic valve 2006 20010005 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - drive design: PPS-drive, VA-threaded bush at the control air connection
- Drive - drive size: DM 50 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 20 mm
- Line connection G 3/4 sleeve
- Special feature: Design for medium and ambient temperature up to -40°C, drive lubricated with Isoflex Top AS NB52, only under piston, PZ-ring made from special NBR, stuffing box packing medium and control air side only made from PTFE. Temperature specifications refer to V only
- Medium temperature (degree C) (max): 180
- Ambient temperature (degree C) (max): 40
- Ambient temperature (degree C) (min): -40
- Medium temperature (degree C) (min): -40
- Ways/positions: 3 ways / 2 positions
- Interface on the drive: No specification
- Arm/drive interface: Nipple thread M28 x 1.5 (standard DN 13.15)
- Control air connection: Standard control air connection or integral design
- Control pressure (min): 4.4
- Control pressure (max): 10
- PMED1 11
- PMED2: 16
- KV1: 9
- KV2 6.2
- Product type
Pneumatic valve
- Operating temperature
-40 °C (min)
- Min. operating temperature
-40 °C
- Manufacturer part #
20010005
- Dim
(Ø) 50 mm
- Operating medium
Compressed air
- (Ø)
50 mm
- Pipe Ø
20 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
4.4 bar
- Type
2006
- Max. ambient temperature
40 °C
- Min. ambient temperature
-40 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3048023 Bürkert Pneumatic valve 2006 20010005 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048023 Bürkert Pneumatic valve 2006 20010005 1 pc(s)
Description
The Bürkert 3/2-way seat valve type 2006 consists of a pneumatically actuated CLASSIC drive and a 3-way valve housing. Depending on the ambient temperature, the drive is available in two different materials, PA and PPS. By switching pressure and working connections different fluid control functions can be realized, for example mixing or distributing media. The flow-optimized valve housing of the type 2006 enables excellent flow values. The proven, self-adjusting gland ensures the leak tightness and therefore reliable operation for years. The 3-way valve type 2006 is controlled via a pilot valve or, in the case of central automation, via a valve terminal. The direct installation of an electric position indicator is simple to implement. For the user, the compact type 2006 is thus often the economical alternative to two individual shut-off valves.
