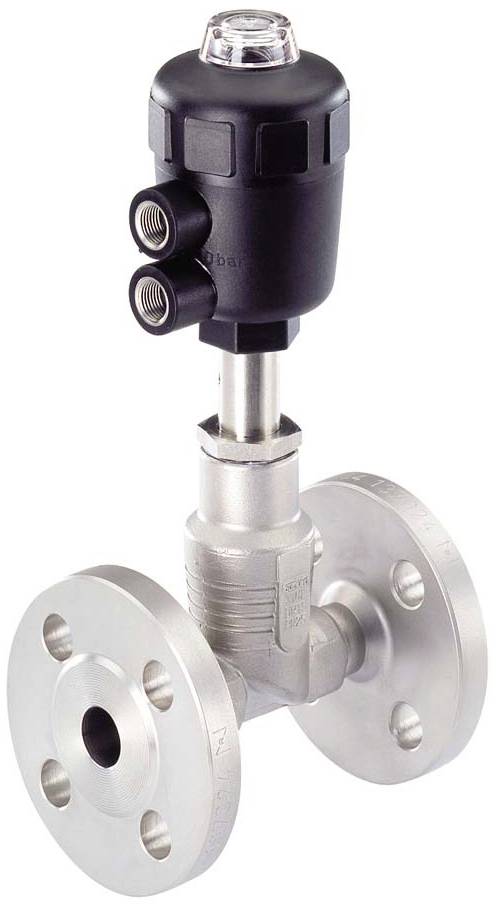

Bürkert Pneumatic valve 2012 342307 11 bar (max) External thread M40 x 1.5 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: PA drive, VA threaded bush on control air connection
- Drive - drive size: DM 63 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 25 mm
- Lead connection: Flange end according to DIN EN 1092-1 for DN25 (PN25) (old DIN 2634)
- Special feature: Fitted with V-ANTR
- Medium temperature (degree C) (max): 185
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 11
- Medium temperature (degree C) (min): -10
- Ways/positions: 2 ways / 2 positions
- Arm/drive interface: Nipple thread M40 x 1.5 (standard DN 25)
- Control air connection: Thread G1/4, socket
- Control pressure (min): 4.5
- Control pressure (max): 10
- KV VALUE (M*3/H): 13
- Product type
Pneumatic valve
- External thread
M40 x 1.5
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
342307
- Max. operating pressure
11 bar
- Pressure range
11 bar (max)
- Operating medium
Compressed air
- Pipe Ø
25 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
4.5 bar
- Type
2012
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047406 Bürkert Pneumatic valve 2012 342307 11 bar (max) External thread M40 x 1.5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047406 Bürkert Pneumatic valve 2012 342307 11 bar (max) External thread M40 x 1.5 1 pc(s)
Description
The externally controlled straight-seat valve consists of a pneumatically actuated piston drive and a 2/2-way straight-seat valve housing. The drive is made from PA or PPS for special operating conditions. The reliable, self-adjusting gland ensures high tightness. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual operation.
