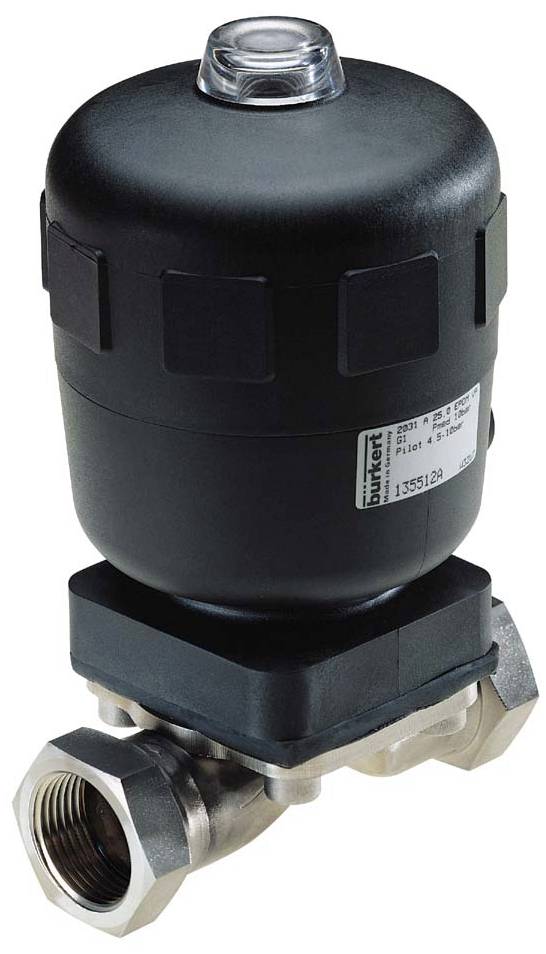

Image similar
Image similar
Bürkert Pneumatic valve 2031 348380 10 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: PA drive, VA threaded bush on control air connection
- Drive - drive size: DM 80 mm
- Mode of action - control function: Closed with spring force
- MATERIAL: STAINLESS STEEL PIPE 1.4435-BN2/UNS S31603 (316L) ACCORDING TO DIN 11866, ASTM A269 / A270, DIN EN 10217-7 / 10216-5
- Seal material:FKM
- Nominal width 20 mm
- Line connection G 3/4 sleeve
- Special feature: Sandblasted outside glass
- Missing attributes: 62 Microinch
- Medium temperature (degree C) (max): 100
- Ambient temperature (degree C) (max): 60
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 10
- Ways/positions: 2 ways / 2 positions
- Control pressure (min): 5.5
- Control pressure (max): 10
- KV VALUE (M*3/H): 13.5
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
348380
- Dim
(Ø) 80 mm
- Max. operating pressure
10 bar
- Pressure range
10 bar (max)
- Operating medium
Compressed air
- (Ø)
80 mm
- Pipe Ø
20 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
5.5 bar
- Type
2031
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3047520 Bürkert Pneumatic valve 2031 348380 10 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047520 Bürkert Pneumatic valve 2031 348380 10 bar (max) 1 pc(s)
Description
The externally controlled diaphragm valve type 2031 consists of a pneumatically actuated piston drive, a diaphragm and a 2-way valve housing. The proven and robust drive with plastic housing ensures the use under hygienic or aggressive ambient conditions. The low flow and low dead space valve housings enable high flow values and a variety of applications. The valve body and diaphragm are available in all common materials and designs. The drive has a compact autoclavable design (PPS design). The integration of automation units 8690/8697 is possible in all levels (can be retrofitted). An explosion-proof ATEX/IECEx device variant is available.
The attachment housing is available either in plastic or stainless steel. As standard the drive is provided with an integrated optical position indicator, optionally a min. / max. Stroke limiter.
