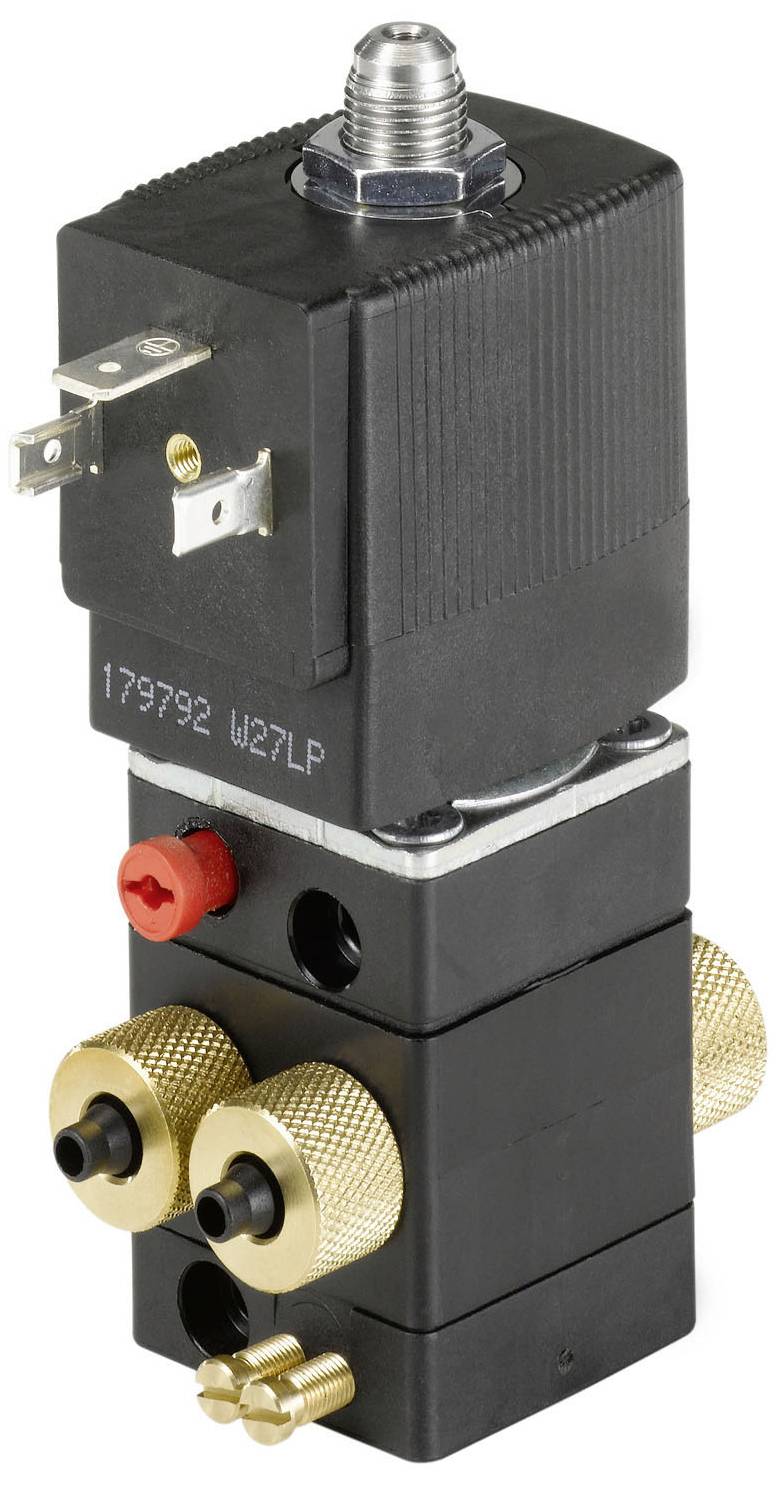

Bürkert Pneumatic valve 5420 134626 2.5 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4/2-way pneumatic valve
- Compact valve
- Plugged coil
- Exhaust air can be throttled
- Hose, thread and flange connection
- Seat valve design
Technical specifications
- Drive - manual operation Material: PA (polyamide)
- Mounting (valve terminal) - arranged dimensions 1: 33 mm
- Sealing Material - Main Valve Seal Material: NBR (Nitrile rubber)
- Sealing material - pre-control sealing material: NBR (nitrile rubber)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 60 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Pressure & temperature - nominal pressure at least 2.5 bar
- Pressure & temperature - nominal pressure max. 10 bar
- Electrical connection - Device socket in the range of supply: Not included
- Electrical connection - Electrical connection Type: Plug picture Form A according to DIN EN 175301-803
- Electrical connection - Electrical connection Position: Opposite supply side
- Equipment properties - Product sub-group: Pneumatic valves
- Equipment characteristics - reset type: Air spring + mechanical spring
- Equipment characteristics - main valve operating principle: Seat valve
- Device properties - valve control type: Electrical
- Device features - switching time opening max.: 30 ms
- Features - switching time includes max.: 20 ms
- Device properties - rated mode/duty cycle: 100%
- Device properties - power reduction integrated: No.
- Nominal width (kV value) - QNn value (gas): 150 l/min.
- Nominal width (kV value) - pilot control nominal diameter (mm): 1.1 mm
- Nominal width (kV value) - main valve nominal width 1 (P) (mm): 3 mm
- Process/line connection - supply connection diameter (inch): 1/8 inch
- Process/wire connection – supply connector type: Internal thread
- Process/cable connection - supply connection Thread type: G
- Process/line connection – work connection type: Screw-connection system
- Process/line connection - work connection Position: Opposite the supplier side
- Process/cable connection - work connection Material: PA (polyamide)
- Process/line connection - working connection diameter (mm): 6 mm
- Process/line connection - work connection screw connection system: Threaded hose connection
- Protection class IP rating (max. for suitable connection) IP65
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Coil (Kern) - Max. Power consumption: 2 W.
- Coil (Kern) - Max. Power consumption: 2 W.
- Coil (Kern) - Coil Switching LED: No.
- Coil (Kern) - Coil wiring Overvoltage protection: None
- Coil (Kern) - Coil Switching Rectifier: No.
- Coil (Kern) - Coil arrangement Pole protection: No.
- Coil (Kern) - Coil Switching Free-wheeling diode: No.
- Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
- Materials - main valve material in contact with medium: PA (polyamide)
- Materials - main valve material in contact with the environment: PA (polyamide)
- Materials - precontrol material in contact with medium: PA (polyamide)
- Materials - precontrol material in contact with the environment: PA (polyamide)
- Operating principle - fluid line connection Number: 4
- Operation - Valve function Number of switching positions: 2
- Operation - Valve function: G - open at rest - pressure port 1 (P) after work port 2 (B), work port 4 (A) after output 3 (R) open G - open at rest - pressure port 1 (P) after work port 2 (B), work port 4 (A) after output 3 (R) open
- Operation - Manual operation: Yes
- Mode of action - manual operation Type: Lever and button combined
- Mode of action - manual actuation Locking: Yes
- Operation principle - manual operation of screw slot: Yes
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
134626
- Max. operating pressure
10 bar
- Operating pressure (min.)
2.5 bar
- Pressure range
2.5 up to 10 bar
IP65
- Type
5420
- Max. media temperature
60 °C
- Media temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3046856 Bürkert Pneumatic valve 5420 134626 2.5 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046856 Bürkert Pneumatic valve 5420 134626 2.5 up to 10 bar 1 pc(s)
Description
The Type 5420 is a pre-controlled 4-way seat valve with servo membranes. A minimum pressure difference of 2.5 bar is required for switching over. The valve can be mounted on two-channel connecting plates with a common pressure supply.
