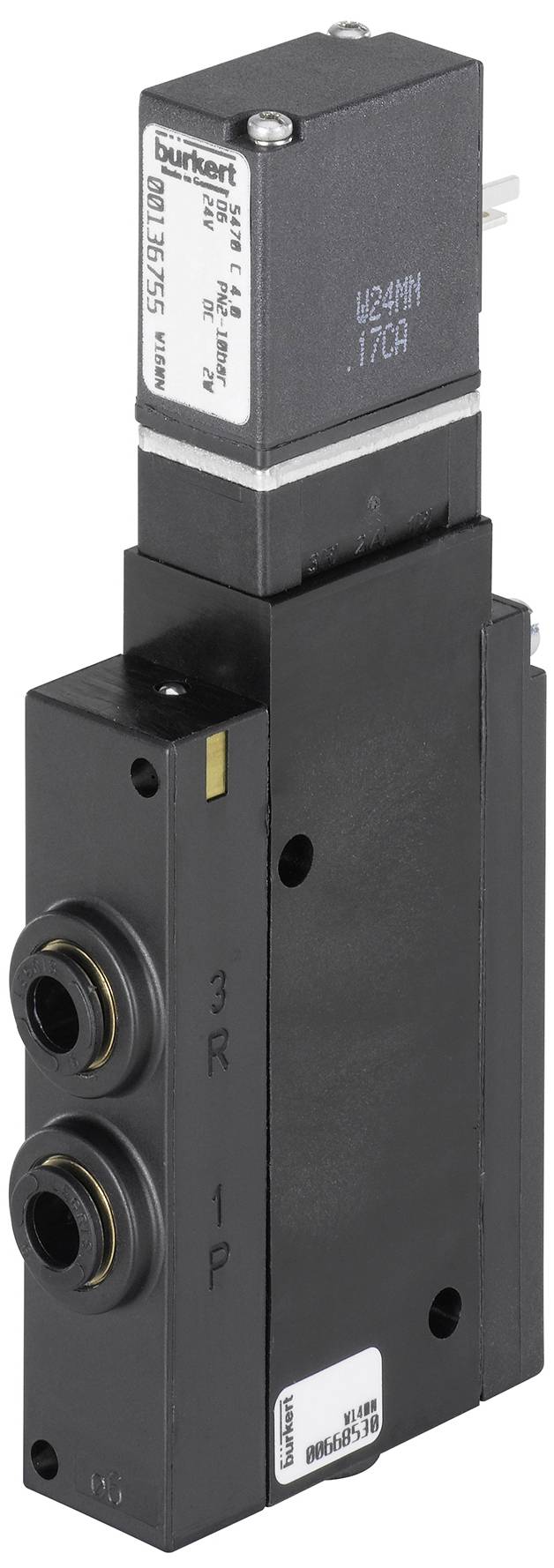

Bürkert Pneumatic valve 5470 132479 2 up to 8 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
3/2-way pneumatic valve
- Compact valve 3/2- and 4/2-way design
- Can be connected in series as valve block
- Low electrical power consumption
- Variety of pneumatic connections
- Robust design
Technical specifications
- Drive - manual operation Material: PA (polyamide)
- Mounting (valve terminal) - arranged dimensions 1: 19 mm
- Sealing Material - Main Valve Seal Material: NBR (Nitrile rubber)
- Sealing material - pre-control of seal material: FKM (fluororubber)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 50 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Pressure & temperature - nominal pressure at least 2 bar
- Pressure & temperature - nominal pressure max. 8 bar
- Electrical connection - Device socket in the range of supply: Not included
- Electrical connection - Electrical connection Type: Plug picture Form C according to DIN EN 175301-803
- Electrical connection - Electrical connection Position: Supply side
- Equipment properties - Product sub-group: Pneumatic valves
- Equipment characteristics - reset type: Air spring + mechanical spring
- Equipment characteristics - main valve operating principle: Seat valve
- Device properties - valve control type: Electrical
- Device features - switching time opening max.: 25 ms
- Features - switching time includes max.: 20 ms
- Device properties - rated mode/duty cycle: 100%
- Device properties - power reduction integrated: No.
- Nominal width (kV value) - QNn value (gas): 300 l/min.
- Nominal width (kV value) - pilot control nominal diameter (mm): 0.9 mm
- Nominal width (kV value) - main valve nominal width 1 (P) (mm): 4 mm
- Process/line connection - supply connection type: Flange
- Process/cable connection - flange diagram: FM07
- Process/wire connection – work connection type: Hose connector
- Process/line connection - work connection Position: Valve bottom
- Process/cable connection - work connection Material: Brass
- Process/line connection - working connection diameter (mm): 6 mm
- Protection class IP rating (max. for suitable connection) IP65
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Coil (Kern) - Max. Power consumption: 1 W.
- Coil (Kern) - Max. Power consumption: 1 W.
- Coil (Kern) - Coil Switching LED: No.
- Coil (Kern) - Coil wiring Overvoltage protection: None
- Coil (Kern) - Coil Switching Rectifier: No.
- Coil (Kern) - Coil arrangement Pole protection: No.
- Coil (Kern) - Coil Switching Free-wheeling diode: No.
- Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
- Materials - main valve material in contact with medium: PA (polyamide)
- Materials - main valve material in contact with the environment: PA (polyamide)
- Materials - precontrol material in contact with medium: PA (polyamide)
- Materials - precontrol material in contact with the environment: PA (polyamide)
- Operating principle - fluid line connection Number: 3
- Operation - Valve function Number of switching positions: 2
- Operation - valve function: C - closed at rest - pressure port 1 (P/NC), working port 2 (A/OUT) after port 3 (R/NO) open C - closed at rest - pressure port 1 (P/NC), working port 2 (A/OUT) open after port 3 (R/NO)
- Operation - Manual operation: Yes
- Mode of action - manual operation Type: Rotary lever
- Mode of action - manual actuation Locking: Yes
- Operation principle - manual operation of screw slot: Yes
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
132479
- Dim
(Ø) 6 mm
- Max. operating pressure
8 bar
- Operating pressure (min.)
2 bar
- Pressure range
2 up to 8 bar
- Operating medium
Compressed air
- (Ø)
6 mm
- Pipe Ø
6 mm
IP65
- Type
5470
- Max. media temperature
50 °C
- Media temperature (min.)
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047088 Bürkert Pneumatic valve 5470 132479 2 up to 8 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047088 Bürkert Pneumatic valve 5470 132479 2 up to 8 bar 1 pc(s)
Description
Type 5470 valves consist of a type 6106 pilot rocker solenoid valve and a pneumatic valve. In the casing of the pilot valve, an anchor that is tilted, similar to a rocker, bends. It switches the valve. The low tilting direction of the rocker is wear-free; basic lubrication is not required. Type 5470 R is available as 3/2- and 4/2-way valve. The valves can be individually connected in series using the module flange. They can be snapped together with the connection modules to form valve blocks. Various variants exist for work connections 2 and 4.
