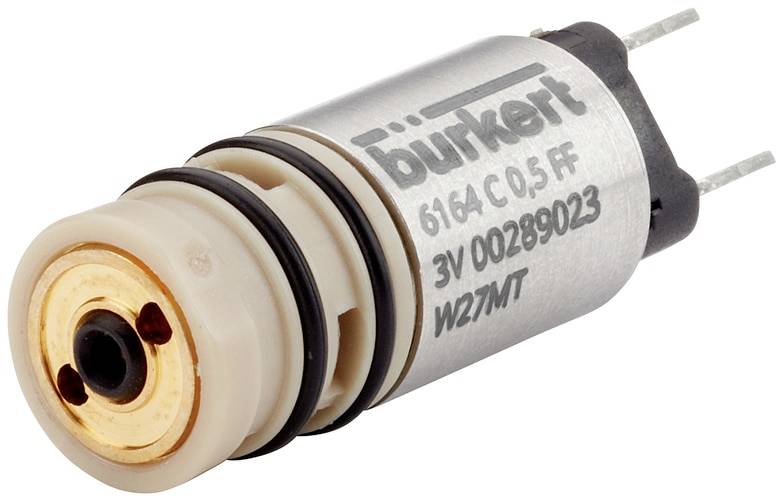

Image similar
Bürkert Pneumatic valve 6164 272893 -0.8 up to 9 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sealing Material - Seat Seal Material Category: Elastomers
- Sealing Material - Seat Seal Material: FKM (Fluoro Rubber)
- Sealing material - external sealing Material: FKM (fluororubber)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 55 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Pressure & temperature - nominal pressure at least -0.8 bar
- Pressure & temperature - nominal pressure max. 9 bar
- Electrical connection - Electrical connection Type: Connection pins 0.5 x 0.5 x 5.08 mm
- Electrical connection - Electrical connection Position: Above
- Electrical connection - Electrical connection Number of contacts: 2
- Electrical connection - Electrical connection Polarity: Irrelevant
- Device features - switching time opening max.: 5 ms
- Features - switching time includes max.: 5 ms
- Device properties - rated mode/duty cycle: 100%
- Device properties - power reduction integrated: No.
- Equipment characteristics - valve design: Without fluid housing
- Device features - Drive type: Lifting anchor
- Device properties - operation: Direct action
- Device Properties - Media Separation: No.
- Device features - switching function: On/off
- Equipment characteristics - width (nominal value): 10 mm
- Nominal width (kV value) - QNn value (gas): 6 l/min.
- Nominal width (kV value) - valve nominal diameter: 0.5 mm
- Process/cable connection - cable connection 1 type: Bürkert-Cartridge connection diagram
- Process/cable connection - cable connection 2 type: Bürkert-Cartridge connection diagram
- Process/cable connection - cable connection 3 type: Bürkert-Cartridge connection diagram
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Coil (Kern) - Coil Switching LED: No.
- Coil (Kern) - Coil wiring Overvoltage protection: None
- Coil (Kern) - Coil Switching Rectifier: No.
- Coil (Kern) - Coil arrangement Pole protection: No.
- Coil (Kern) - Coil Switching Free-wheeling diode: No.
- Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
- Coil (Kern) - type: Tightly integrated
- Coil (Kern) - material (casing): Stainless steel
- Coil (Kern) – rated DC 0.7 W.
- Coil (Kern) - Reduced power DC 0.7 W.
- Materials - Valve material in contact with medium: PEEK (polyether ether ketone)
- Materials - valve material 2: PA (polyamide)
- Materials - valve material 3: Stainless steel
- Operating principle - fluid line connection Number: 3
- Operation - Valve function Number of switching positions: 2
- Operation - valve function: C - closed at rest - pressure port 1 (P/NC), working port 2 (A/OUT) after port 3 (R/NO) open C - closed at rest - pressure port 1 (P/NC), working port 2 (A/OUT) open after port 3 (R/NO)
- Operation - Manual operation: No.
- Approvals - nominal power 0.7 W
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
272893
- Max. operating pressure
9 bar
- Operating pressure (min.)
-0.8 bar
- Pressure range
-0.8 up to 9 bar
- Operating medium
Oxygen
- Width
10 mm
- Pipe Ø
0.5 mm
- Type
6164
- Max. media temperature
55 °C
- Media temperature (min.)
-10 °C
Documents & Downloads
Datasheet
Datasheet 3047221 Bürkert Pneumatic valve 6164 272893 -0.8 up to 9 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047221 Bürkert Pneumatic valve 6164 272893 -0.8 up to 9 bar 1 pc(s)
Description
Customer-specific applications are becoming more and more complex. Construction space, fluid performance and cost savings are decisive criteria. This increases the requirements for the components used. The Type 6164 was developed with the aim of pneumatic control through the best possible integrability of the pilot valve in Block and/or Injection molded plastic parts, thus creating a more compact design.
Thanks to its uncompromising reliability, above-average service life and fluid characteristics, this valve type is setting new standards
Standards.
A wide range of approvals and approvals enable the use in medical applications such as media bars in the
Dental technology or oxygen control in ventilators.
This text is machine translated.
Thanks to its uncompromising reliability, above-average service life and fluid characteristics, this valve type is setting new standards
Standards.
A wide range of approvals and approvals enable the use in medical applications such as media bars in the
Dental technology or oxygen control in ventilators.
