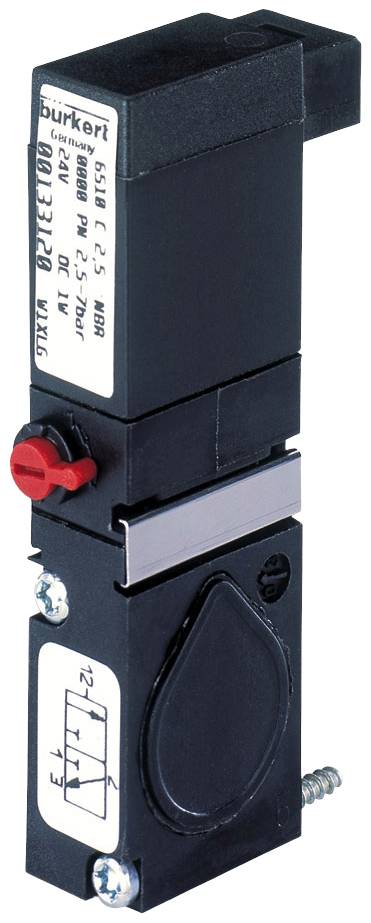

Bürkert Pneumatic valve 6510 184307 2.5 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
3/2-way pneumatic valve 10 mm
- Compact dimensions
- Fast switching times
- Low electrical power consumption
Technical specifications
- Drive - Manual operation Material: No manual operation available
- Mounting (valve terminal) - arranged dimensions 1: 11 mm
- Sealing Material - Main Valve Seal Material: NBR (Nitrile rubber)
- Sealing material - pre-control of seal material: FKM (fluororubber)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 50 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Pressure & temperature - nominal pressure at least 2.5 bar
- Pressure & temperature - nominal pressure max. 10 bar
- Electrical connection - Device socket in the range of supply: Not included
- Electrical connection - Electrical connection Type: Plug - Rectangular grid dimension 5.08
- Electrical connection - Electrical connection Position: Supply side
- Electrical connection - Electrical connection Number of contacts: 2
- Electrical connection - Electrical connection Polarity: Right pin positive pole
- Equipment properties - Product sub-group: Pneumatic valves
- Equipment characteristics - reset type: Air spring + mechanical spring
- Equipment characteristics - main valve operating principle: Seat valve
- Device properties - valve control type: Electrical
- Device features - switching time opening max.: 10 ms
- Features - switching time includes max.: 15 ms
- Device properties - rated mode/duty cycle: 100%
- Device properties - power reduction integrated: No.
- Device properties - Mounting type: Plastic-cutting screws
- Device features - Mounting dimensions M2 x 20
- Device properties - Material mounting: Steel
- Nominal width (kV value) - QNn value (gas): 150 l/min.
- Nominal width (kV value) - pilot control nominal diameter (mm): 0.6 mm
- Nominal width (kV value) - main valve nominal width 1 (P) (mm): 2.5 mm
- Process/line connection - supply connection type: Flange
- Process/cable connection - flange image: FM08
- Process/line connection – work connection type: Flange
- Process/line connection - working connection Position: On the pneumatic module
- Process/cable connection - working connection flange picture: FM08
- Protection class IP (max. for suitable connection): IP20
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: No.
- Coil (Kern) - spool size 10 mm
- Coil (Kern) - Max. Power consumption: 0.8 W.
- Coil (Kern) - Max. Power consumption: 0.8 W.
- Coil (Kern) - Coil Switching LED: No.
- Coil (Kern) - Coil wiring Overvoltage protection: None
- Coil (Kern) - Coil Switching Rectifier: No.
- Coil (Kern) - Coil arrangement Pole protection: No.
- Coil (Kern) - Coil Switching Free-wheeling diode: No.
- Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
- Materials - main valve material in contact with medium: PA (polyamide)
- Materials - main valve material in contact with the environment: PA (polyamide)
- Materials - precontrol material in contact with medium: PPS (polyphenylene sulfide)
- Materials - precontrol material in contact with the environment: PPS (polyphenylene sulfide)
- Operating principle - fluid line connection Number: 3
- Operation - Valve function Number of switching positions: 2
- Operation - valve function: C - closed at rest - pressure port 1 (P/NC), working port 2 (A/OUT) after port 3 (R/NO) open C - closed at rest - pressure port 1 (P/NC), working port 2 (A/OUT) open after port 3 (R/NO)
- Operation - Manual operation: No.
- Operation - Manual operation Type: Not available
- Mode of action - manual operation locking: No manual operation available
- Operation - Manual operation Screw slot: No manual operation available
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
184307
- Max. operating pressure
10 bar
- Operating pressure (min.)
2.5 bar
- Pressure range
2.5 up to 10 bar
- Operating medium
Compressed air
- Pipe Ø
2.5 mm
IP20
- Type
6510
- Max. media temperature
50 °C
- Media temperature (min.)
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3046948 Bürkert Pneumatic valve 6510 184307 2.5 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046948 Bürkert Pneumatic valve 6510 184307 2.5 up to 10 bar 1 pc(s)
Description
Type 6510 consists of a pilot flipper solenoid valve type 6144 and a pneumatic seat valve. The flip-action system allows you to switch high pressures at low power consumption and with short switching times. All valves are equipped with manual emergency operation as standard. Type 6510 can be arranged in series and with plug connection at the rear preferably on valve terminals type 8640 and with plug connection at the front primarily on valve blocks for controlling pneumatic drives.
