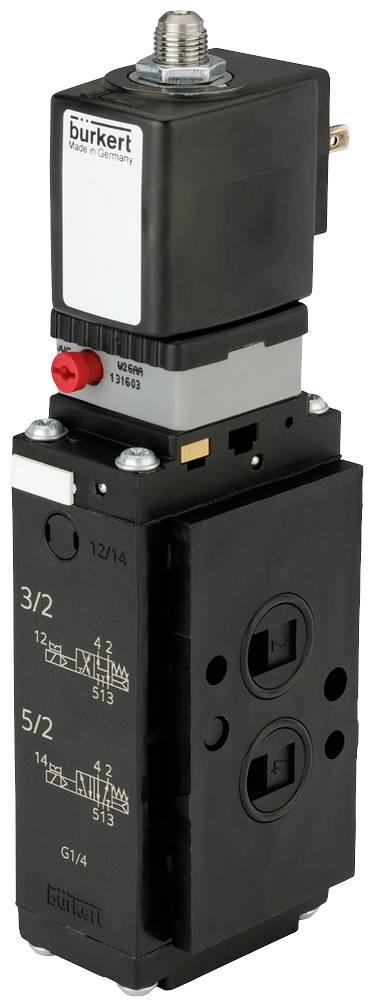

Image similar
Bürkert Pneumatic valve 6519 20013604 2 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
5/2-way pneumatic valve 32mm
- Large flow
- Low electrical power consumption
- Single or block mounting
- Standard, Ex MB, Ex EB MB and Ex ia versions
- Sleeve G 1/4", NPT 1/4" and NAMUR flange
Technical specifications
- Coil (Kern) - spool size 32 mm
- Nominal width 8 mm
- Special feature: Electrical connection via A/B
- Voltage 24 volt
- Frequency: Direct current
- Medium temperature (degree C) (max): 50
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -25
- Pressure (bar) (max): 10
- Medium temperature (degree C) (min): -10
- Operation: 5/2-way; output 2 pressurized in rest position
- Line connection 1: G 1/4 sleeve
- Line connection 2: G 1/4 sleeve
- Electro-pneumatic / air spring + mech. Mode Spring
- Power consumption 2 watt
- Pressure (bar) (min): 2
- QNN VALUE (L/MIN): 1300
- Duty cycle (%): 100
- Opening time (msec) (max): 20
- Closing time (ms) (max): 40
- Product type
Pneumatic valve
- Operating temperature
-25 °C (min)
- Min. operating temperature
-25 °C
- Manufacturer part #
20013604
- Dim
(Ø) 8 mm
- Max. operating pressure
10 bar
- Operating pressure (min.)
2 bar
- Pressure range
2 up to 10 bar
- Operating medium
Compressed air
- (Ø)
8 mm
- Max. power consumption
2 W
- Type
6519
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3048025 Bürkert Pneumatic valve 6519 20013604 2 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048025 Bürkert Pneumatic valve 6519 20013604 2 up to 10 bar 1 pc(s)
Description
Type 6518 is a pre-controlled 3/2-way valve, and Type 6519 is a 3/2-, 5/2- or 5/3-way valve. They form a series together. The valves can be used individually or on blocks. They operate without constant air consumption and are used to control double or single-acting drives. The use of high-quality materials makes it possible to use the valves even under open air and chemical atmospheres. The series includes devices with Ex approval and NAMUR flange pattern. With the valve modes of action C, D and H monostable the safety level SIL2 can be reached according to IEC 61508, depending on the architecture of the safety device.
