Bürkert Pneumatic valve 6527 156337 2 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

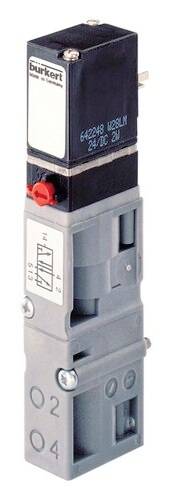

5/2-way pneumatic valve 16 mm
- Compact valve
- Fast switching times
- Low electrical power consumption
- Rocker pre-control in DC
Technical specifications
- Drive - manual operation Material: PA (polyamide)
- Mounting (valve terminal) - arranged dimensions 1: 16.5 mm
- Sealing material - main valve seal material: FKM (fluororubber)
- Sealing material - pre-control of seal material: FKM (fluororubber)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 50 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Pressure & temperature - nominal pressure at least 2 bar
- Pressure & temperature - nominal pressure max. 10 bar
- Electrical connection - Device socket in the range of supply: Not included
- Electrical connection - Electrical connection Type: Plug picture Form C according to DIN EN 175301-803
- Electrical connection - Electrical connection Position: Supply side
- Electrical connection - Electrical connection Number of contacts: 2 + protective conductor
- Electrical connection - Electrical connection Polarity: Irrelevant
- Equipment properties - Product sub-group: Pneumatic valves
- Equipment characteristics - reset type: Air spring + mechanical spring
- Equipment characteristics - main valve operating principle: Seat valve
- Device properties - valve control type: Electrical
- Device features - switching time opening max.: 20 ms
- Features - switching time includes max.: 12 ms
- Device properties - rated mode/duty cycle: 100%
- Device properties - power reduction integrated: No.
- Device properties - Mounting type: Metric screws
- Device features - Mounting dimensions: M3 x 30
- Device properties - Material mounting: Steel
- Nominal width (kV value) - QNn value (gas): 700 l/min.
- Nominal width (kV value) - pilot control nominal diameter (mm): 1.2 mm
- Nominal width (kV value) - main valve nominal width 1 (P) (mm): 6 mm
- Process/line connection - supply connection type: Flange
- Process/line connection - flange diagram: FM17
- Process/line connection – work connection type: Flange
- Process/line connection - working connection Position: On the pneumatic module
- Process/line connection - working connection flange picture: FM17
- Protection class IP rating (max. for suitable connection) IP65
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Coil (Kern) - spool size 16 mm
- Coil (Kern) - Max. Power consumption: 2 W.
- Coil (Kern) - Max. Power consumption: 2 W.
- Coil (Kern) - Coil Switching LED: No.
- Coil (Kern) - Coil wiring Overvoltage protection: None
- Coil (Kern) - Coil Switching Rectifier: No.
- Coil (Kern) - Coil arrangement Pole protection: No.
- Coil (Kern) - Coil Switching Free-wheeling diode: No.
- Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
- Materials - main valve material in contact with medium: PA (polyamide)
- Materials - main valve material in contact with the environment: PA (polyamide)
- Materials - precontrol material in contact with medium: PA (polyamide)
- Materials - precontrol material in contact with the environment: PA (polyamide)
- Operating principle - fluid line connection Number: 5
- Operation - Valve function Number of switching positions: 2
- Operation - Valve function: H/Z - open in rest position - Pressure connection 1 after work connection 2, work connection 4 after output 5 open, output 3 speed/Z - open in rest position - Pressure connection 1 after work connection 2, work connection 4 after output 5 open, output 3 closed
- Operation - Manual operation: Yes
- Mode of action - manual operation Type: Rotary lever
- Mode of action - manual actuation Locking: Yes
- Operation principle - manual operation of screw slot: Yes
- Product type
Pneumatic valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
156337
- Max. operating pressure
10 bar
- Operating pressure (min.)
2 bar
- Pressure range
2 up to 10 bar
- Operating medium
Compressed air
- Pipe Ø
6 mm
IP65
- Type
6527
- Max. media temperature
50 °C
- Media temperature (min.)
-10 °C
Documents & Downloads
Datasheet
Datasheet 3047109 Bürkert Pneumatic valve 6527 156337 2 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047109 Bürkert Pneumatic valve 6527 156337 2 up to 10 bar 1 pc(s)
Description
Type 6527 valves consist of a type 6106 pilot rocker solenoid valve and a pneumatic seat valve. The operating principle allows high pressures to be switched with low power consumption and with short switching times. The valves can be connected in series and with plug connection at the rear preferably for valve terminals (types 8640 or 8644) and with plug runs at the front preferably on valve blocks for controlling pneumatic drives. The pilot valves are equipped with manual actuation as standard.
