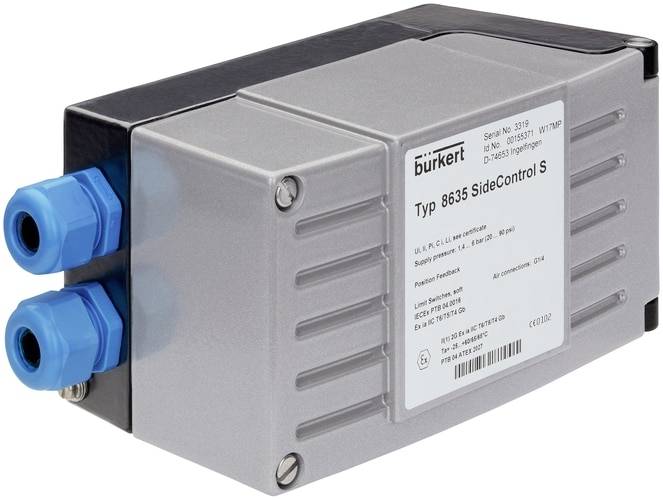

Bürkert Positioner 147263 8635 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Positioner Side CONTROL
- Compact and robust design
- Simple start up through TUNE function
- Dynamic control system without air consumption in the adjusted state
- Intrinsically safe according to ATEX II 2 (1) G Ex ia IIC T6 GB
- Optionally with integrated process controller
Technical specifications
- Activation / feedback – internal end position feedback: 0 pieces
- Control / feedback – external end position feedback: 0 pieces
- Activation / feedback signal - end position feedback direct voltage: No.
- Activation / feedback – end position feedback AC voltage: No.
- Activation / feedback sensor - Position sensor type: Internally rotating
- Activation / feedback signal: Potentiometer
- Activation / Feedback - Positioning system with booster function: No.
- Pressure & temperature - ambient temperature min: -25 °C.
- Pressure & temperature - temperature Surroundings max. 60 °C
- Inputs/outputs - output 2 digital transistor Connection NPN: No.
- Inputs/outputs - output 2 digital transistor Connection PNP: No.
- Inputs/outputs - output 3 digital transistor Connection NPN: No.
- Inputs/outputs - output 3 digital transistor Connection PNP: No.
- Input/output - Input 1 type analogue Current 4-20 mA
- Input / Output - Input 2 type digital transistor Connection NPN: No.
- Inputs/outputs - input 2 type digital transistor Connection PNP: Yes
- Electrical connection - Electrical connection Type: Screw terminals with cable bushing
- Functions - Function: Positioner
- Device Properties - Product Sub-Group: Positioner / Process Controller
- Equipment characteristics - Type of installation: NAMUR / IEC 534 - 6 / VDI/VDE 3845
- Equipment features - Main valve with integrated throttle: Throttle with screw slot
- Nominal width (kV value) - QNn value (gas): 115 l/min.
- Nominal width (kV value) - valve nominal diameter: 2 mm
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 Thread name: 1/4
- Process/cable connection - cable connection 1 Thread type: G.
- Process/line connection – line connection 2 type: Internal thread
- Process/cable connection - cable connection 2 Thread type: G.
- Process/cable connection - cable connection 2 Thread name: 1/4
- Process/line connection – line connection 3 type: Internal thread
- Process / line connection - line connection 3 pre-mounted: Silencer
- Process/cable connection - cable connection 3 Thread type: G.
- Process/cable connection - cable connection 3 Thread name: 1/4
- Protection class IP rating (max. for suitable connection) IP65
- Software / communication - operator interface: Internal keyboard and display
- Voltage - voltage min. / nominal voltage: 10.2 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Voltage - Internal supply voltage: No.
- Voltage - supply voltage via BUS: No.
- Voltage - supply voltage via isolation barrier: Yes
- Voltage - Electrically isolated actuator supply: No.
- Operation - Manual operation: No.
- Operation - Pneumatic function 1 Double acting: No.
- Operating principle - Pneumatic function 1 single-acting: Yes
- Approval type IECEx, AEXIECEx, ATEX
- Type of approval: Ex ia IIC T6, II (1) 2 G Ex ia IIC T6 GB
- Product type
Positioner
- Operating temperature
-25 °C (min)
- Min. operating temperature
-25 °C
- Manufacturer part #
147263
- Connection
Screw terminals with cable bushing
- Operating medium
Compressed air
- Pipe Ø
2 mm
- Min. operating voltage
10.2 V
- Nominal width
2 mm
- Max. operating voltage
24 V
- Max. ambient temperature
60 °C
- Min. ambient temperature
-25 °C
Documents & Downloads
Datasheet
Datasheet 3046775 Bürkert Positioner 147263 8635 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046775 Bürkert Positioner 147263 8635 1 pc(s)
Description
The SideControl type 8635 positioner is an electro-pneumatic positioner in two-wire technology for pneumatically actuated process valves with thrust or swivel drive. Signal processing, control and control of the internal control system is carried out via microprocessor-controlled electronics. The implemented Autotune software function allows the positioner to be automatically adjusted to the installed control valve. The positioner is conveniently configured and operated via three control keys as well as a display with clear text display. The development of a distributed control system is possible when equipped with a process controller with PID response. The SideControl Positioner type 8635 is optionally approved for use in hazardous areas (zone 1) according to ATEX. The casing is suitable for use in chemical and process technology through its compact and robust construction.
