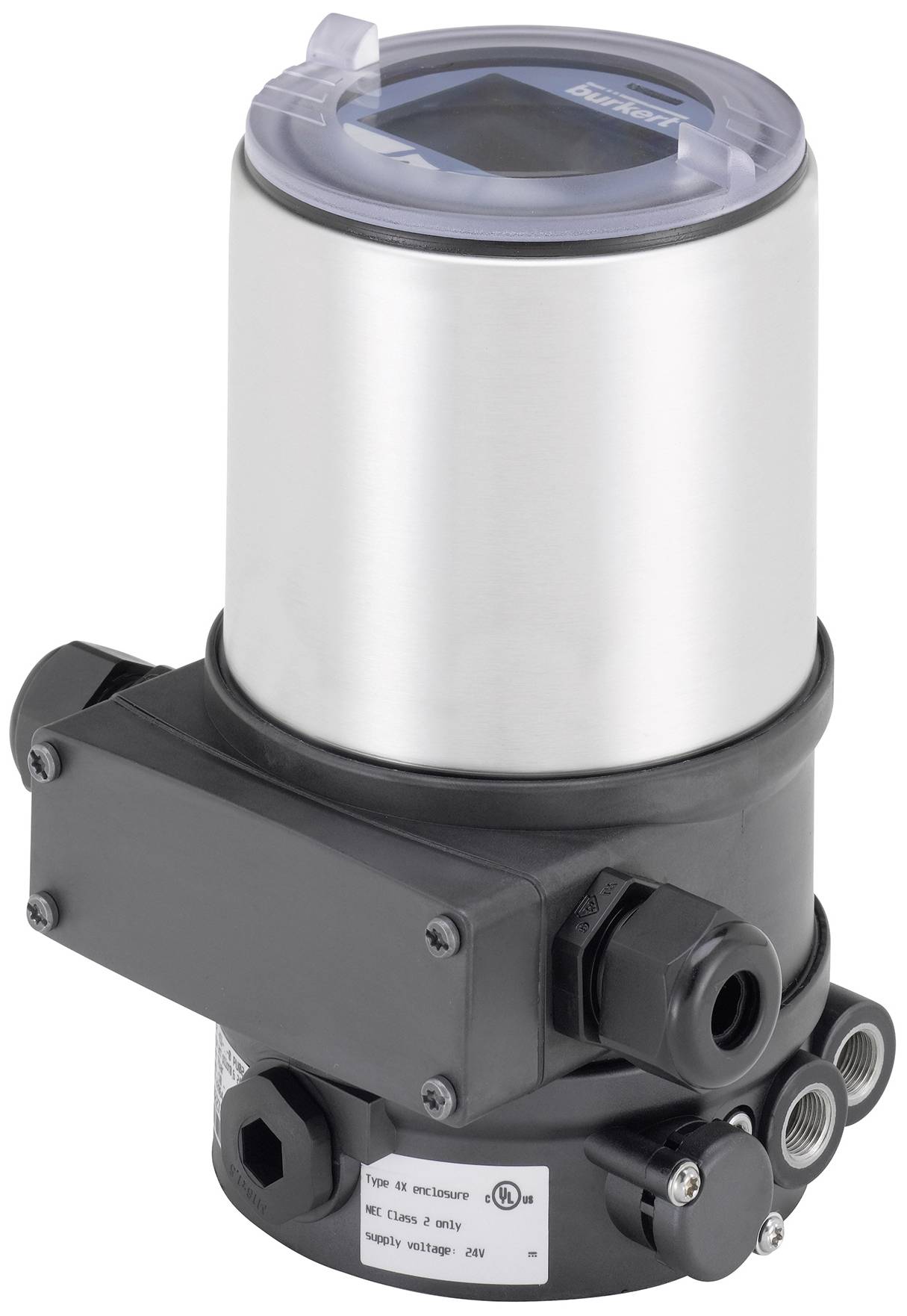

Bürkert Positioner 306925 8692 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Positioner top 70mm for 27XX drive
- Compact and robust stainless steel design
- Very easy start-up with automatic X-Tune function
- Contactless distance sensor
- Integrated control air routing and spring chamber ventilation
- Ethernet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1 or Bürkert system bus (bus)
Technical specifications
- Control / Feedback - For 40 mm drive size: No.
- Activation / feedback signal - For drive size 50mm: No.
- Control / Feedback - For 63mm drive size: No.
- Control / feedback signal - For 70mm drive size: No.
- Activation / feedback signal - For drive size 80mm: No.
- Control / repeater - For 90mm drive size: No.
- Activation / feedback – For drive size 100mm: No.
- Control / Feedback - For 125 mm drive size: Yes
- Control / Feedback unit - For drive size 130mm: No.
- Control / feedback signal - For 175mm drive size: Yes
- Activation / feedback signal - For drive size 225mm: Yes
- Activation / feedback sensor – type: Internal linear
- Control / feedback – signal transducer: Digital 14-bit
- Activation / Feedback - Positioning system with booster function: No.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- In-/outputs - input 1 type analogue voltage: 0-5/10 V
- In-/outputs - Input 1 type analogue Current 0/4-20 mA
- Input / Output - Input 2 type digital transistor Connection NPN: No.
- Inputs/outputs - input 2 type digital transistor Connection PNP: Yes
- Electrical connection - Electrical connection Type: Screw terminals with cable bushing
- Functions - Function: Positioner
- Device Properties - Product Sub-Group: Positioner / Process Controller
- Equipment characteristics - Type of installation: CLASSIC - drive
- Nominal width (kV value) - QNn value (gas): 130 l/min.
- Nominal width (kV value) - valve nominal diameter: 2.5 mm
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 Thread name: 1/8
- Process/cable connection - cable connection 1 Thread type: G.
- Protection class IP rating (max. for suitable connection) IP65/67
- Software / communication - communication interface protocol: Service bus
- Software / communication - operator interface: Internal keyboard and display
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Voltage - Internal supply voltage: No.
- Voltage - supply voltage via BUS: No.
- Voltage - supply voltage via cut-off barrier: No.
- Voltage - Electrically isolated actuator supply: No.
- Operation - Manual operation: Yes
- Operation - Pneumatic function 1 Double acting: No.
- Operating principle - Pneumatic function 1 single-acting: Yes
- Approval type ULUL
- Type of approval: UL Listed cULus
- Product type
Positioner
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
306925
- Connection
Screw terminals with cable bushing
- Operating medium
Compressed air
- Min. operating voltage
24 V
- Nominal width
2.5 mm
- Max. operating voltage
24 V
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047051 Bürkert Positioner 306925 8692 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047051 Bürkert Positioner 306925 8692 1 pc(s)
Description
The compact positioner type 8692 is designed for integrated mounting on pneumatic drives of the process control valve series type 23xx/2103 and specifically for the requirements of hygienic process conditions. The control air guide is integrated into the drive without external tubing. Easy operation and selection of the extensive additional software functions are made through the large graphic display with background lighting and the membrane keyboard or through COMMUNICATOR.
The positioner detects the valve position without wear via a contact-less, analogue position sensor. The integrated diagnostic functions can be used to monitor the operating conditions of the control valve. Valve diagnostic messages via status signals are made according to NE107 (NAMUR) and are recorded as history entries.
The housing is made of chemically resistant materials and is easy to clean and offers practical IP protection for use in hygienic process technology in the food, beverage and pharmaceutical industries. In combination with the ELEM series of Bürkert drives, the pneumatic control system allows spring chamber ventilation, thereby preventing contamination of the drive chambers by the environment.
This text is machine translated.
The positioner detects the valve position without wear via a contact-less, analogue position sensor. The integrated diagnostic functions can be used to monitor the operating conditions of the control valve. Valve diagnostic messages via status signals are made according to NE107 (NAMUR) and are recorded as history entries.
The housing is made of chemically resistant materials and is easy to clean and offers practical IP protection for use in hygienic process technology in the food, beverage and pharmaceutical industries. In combination with the ELEM series of Bürkert drives, the pneumatic control system allows spring chamber ventilation, thereby preventing contamination of the drive chambers by the environment.
