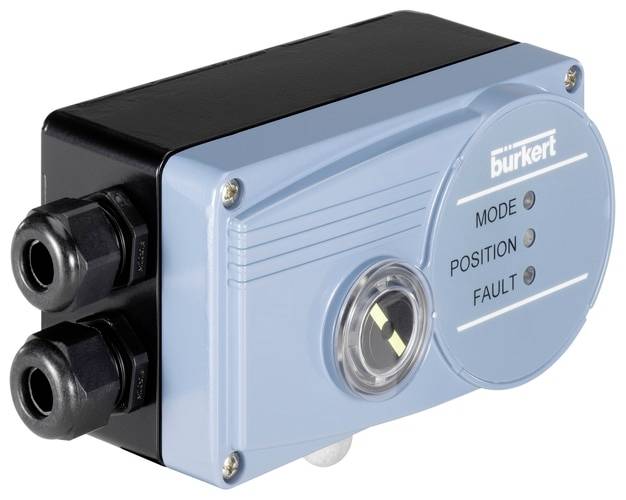

Bürkert Positioner 323214 8791 7 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Positioner SideControl BASIC NAMUR
- Compact and robust design
- Simple setup through Tune-function
- Integrated diagnostic functions for valve monitoring
- Dynamic control system without air consumption in the adjusted state
- IO-Link, AS-Interface or Bürkert system bus (bus)
Technical specifications
- Control / Feedback - For 40 mm drive size: No.
- Activation / feedback signal - For drive size 50mm: No.
- Control / Feedback - For 63mm drive size: No.
- Control / feedback signal - For 70mm drive size: No.
- Activation / feedback signal - For drive size 80mm: No.
- Control / repeater - For 90mm drive size: No.
- Activation / feedback – For drive size 100mm: No.
- Control / Feedback - For 125 mm drive size: Yes
- Control / Feedback unit - For drive size 130mm: Yes
- Control / feedback signal - For 175mm drive size: Yes
- Activation / feedback signal - For drive size 225mm: Yes
- Activation / feedback sensor - Position sensor type: Internally rotating
- Activation / feedback signal: Potentiometer
- Activation / Feedback - Positioning system with booster function: No.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 60 °C
- Inputs/outputs - output 2 digital transistor Connection NPN: No.
- Inputs/outputs - output 2 digital transistor Connection PNP: No.
- In-/outputs - Input 1 type analogue Current 0/4-20 mA
- Input / Output - Input 2 type digital transistor Connection NPN: No.
- Inputs/outputs - input 2 type digital transistor Connection PNP: Yes
- Electrical connection - Electrical connection Type: Screw terminals with cable bushing
- Functions - Function: Positioner
- Device Properties - Product Sub-Group: Positioner / Process Controller
- Equipment characteristics - Type of installation: NAMUR / IEC 534 - 6 / VDI/VDE 3845
- Nominal width (kV value) - QNn value (gas): 100 l/min.
- Nominal width (kV value) - valve nominal diameter: 2.2 mm
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 Thread name: 1/4
- Process/cable connection - cable connection 1 Thread type: G.
- Process/line connection – line connection 2 type: Internal thread
- Process/cable connection - cable connection 2 Thread type: G.
- Process/cable connection - cable connection 2 Thread name: 1/4
- Process/line connection – line connection 3 type: Internal thread
- Process/cable connection – cable connection 3 pre-assembled: Dummy plug
- Process/cable connection - cable connection 3 Thread type: G.
- Process/cable connection - cable connection 3 Thread name: 1/4
- Protection class IP rating (max. for suitable connection) IP65/67
- Software / communication - communication interface protocol: Service bus
- Software / communication - user interface: DIP-switch
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Voltage - Internal supply voltage: No.
- Voltage - supply voltage via BUS: No.
- Voltage - supply voltage via cut-off barrier: No.
- Voltage - Electrically isolated actuator supply: No.
- Operation - Manual operation: No.
- Operating principle - Pneumatic function 1 double-acting: Yes
- Operating principle - Pneumatic function 1 single-acting: Yes
- Type of approval CSACSA
- Type of approval: Class 3221-82 Valve Actuators - USA, Class 3221-02 Valve Actuators - Canada
- Product type
Positioner
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
323214
- Connection
Screw terminals with cable bushing
- Max. operating pressure
7 bar
- Pressure range
7 bar (max)
- Operating medium
Compressed air
- Pipe Ø
2.2 mm
- Min. operating voltage
24 V
- Nominal width
2.2 mm
- Max. operating voltage
24 V
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047358 Bürkert Positioner 323214 8791 7 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047358 Bürkert Positioner 323214 8791 7 bar (max) 1 pc(s)
Description
The robust and compact positioner is designed for mounting on thrust and swivel drives with standardization in accordance with IEC 65034-6-1 or VDI/VDE 3845 (IEC 60534-6-2). The variant with remote position sensors can also be used to control Bürkert process control valves. The setpoint setting for the digital electro-pneumatic positioner SideControl BASIC is made via current standard signals 4…20mA or via bus as an option. In addition, a binary input and an optional analog feedback signal are available. The valve opening is qualitatively indicated via a mechanical indicator element and the device status is signaled via 3 colored LEDs. All operating elements are present in the housing. The commissioning takes place automatically and the following functions are activated directly on the device via DIP switch: Sealing closing threshold, conversion of the setpoint signal, characteristic selection, manual/automatic switching. Additional options for configuration and parameterization, such as the linearization of the operating characteristic by means of a freely programmable correction characteristic, are available with the help of communication software. The pneumatic actuator system can be used equally for single and double-acting drives. It is characterized by a defined safety behavior in the event of failure of the electrical or pneumatic auxiliary power and has a very large usable air power range at supply pressures up to 7 bar.
