Bürkert Rotary actuator 225194 3003 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

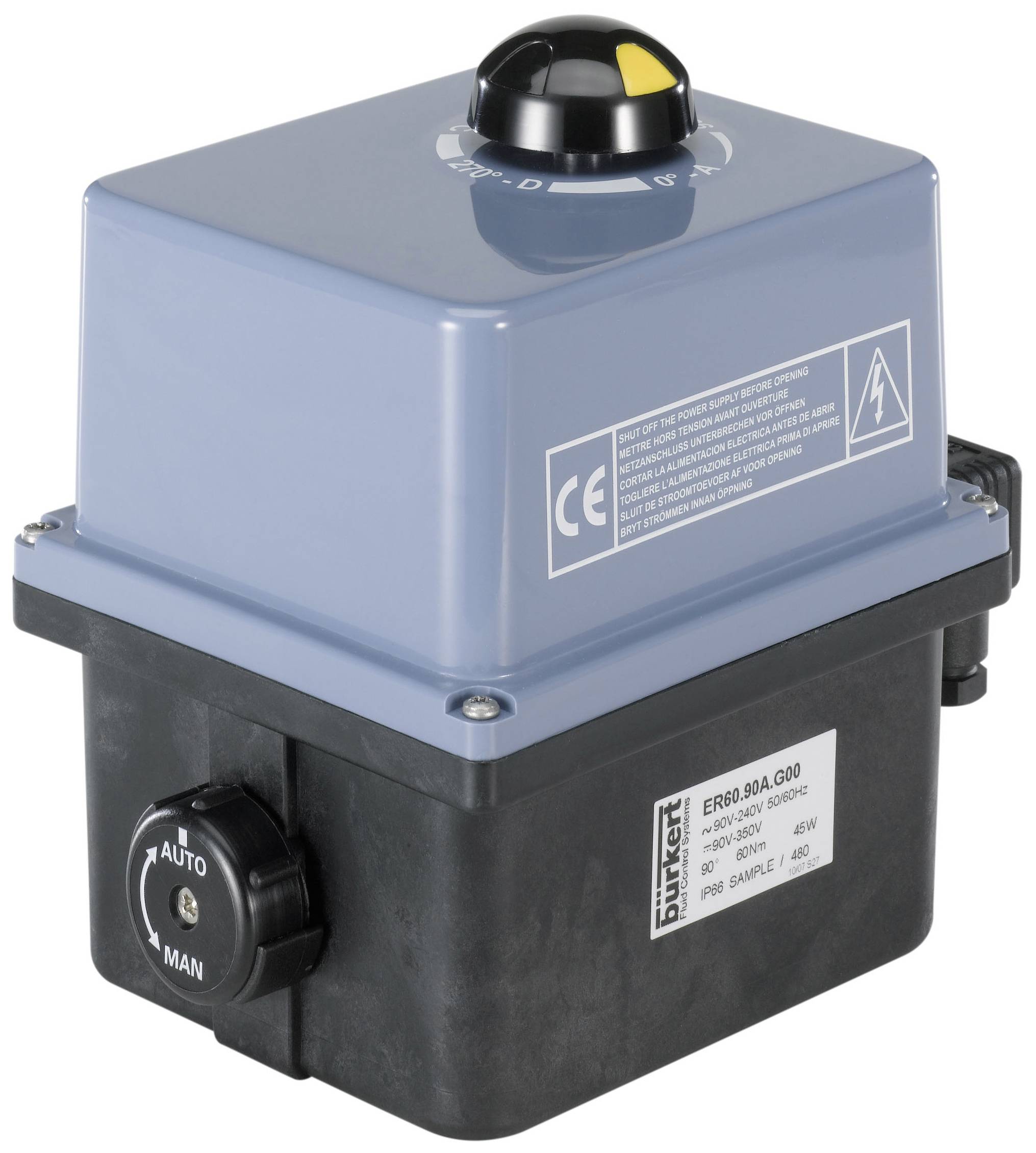

Electric rotary drive
- Possible direct mounting on ball valves and shut-off flaps
- Manual emergency operation as standard
- Adjustable limit switch
- Multiple voltage range
Technical specifications
- Activation / feedback signal - limit position feedback number: 2 pieces
- Drive - Drive Material Category: Plastics
- Drive - drive material: PA (polyamide)
- Drive - Angle of rotation: 90 Deg
- Drive - torque: 35 N m.
- Drive - Heating resistors: Yes
- Drive - Mounting flange according to ISO 5211: Yes
- Drive - Interface for drive/valve flange: F05/F07
- Drive - interface drive/fitting shaft: 22 mm
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Inputs/outputs - output 1 type analogue Current: No feedback
- Inputs/outputs - output 1 type analogue voltage: No feedback
- Inputs/outputs - input 1 type analogue Voltage: No control
- Input / output - Input 1 type analog Current: No control
- Electrical connection - Electrical connection 2 Type: Screw connection M20
- Electrical connection - Electrical connection Type: Plug picture Form A according to DIN EN 175301-803
- Functions - Emergency reset: No.
- Functions - Potentiometer: No.
- Device Properties - Product Sub-Group: Drives
- Device properties - setting time: 7 seconds
- Protection class IP rating (max. for suitable connection) IP66
- Operation - Valve function Number of switching positions: 2
- Type of approval CSACSA
- Voltage frequency 50/60 Hz
- Product type
Rotary actuator
- Manufacturer part #
225194
IP66
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047142 Bürkert Rotary actuator 225194 3003 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047142 Bürkert Rotary actuator 225194 3003 1 pc(s)
Description
The type 3003 electric-motor rotary drive is a compact and powerful actuator drive system that ensures a long service life. The materials have been selected for maintenance-free operation, even in aggressive environments, and ensure low thermal stress. The modular design offers many options such as additional limit switches, potentiometers or also integrated batteries for the safe use as an emergency power variant. The input signals as well as the output signals (e. g. 4-20 mA, 0-20 mA, 0-10 V) can be programmed in the control drives. Heating resistance and torque limitation are standard. The housing is made of flame-retardant material, classified according to UL 94 V0.
