Buy Bürkert SE30 423913 1 pc(s)

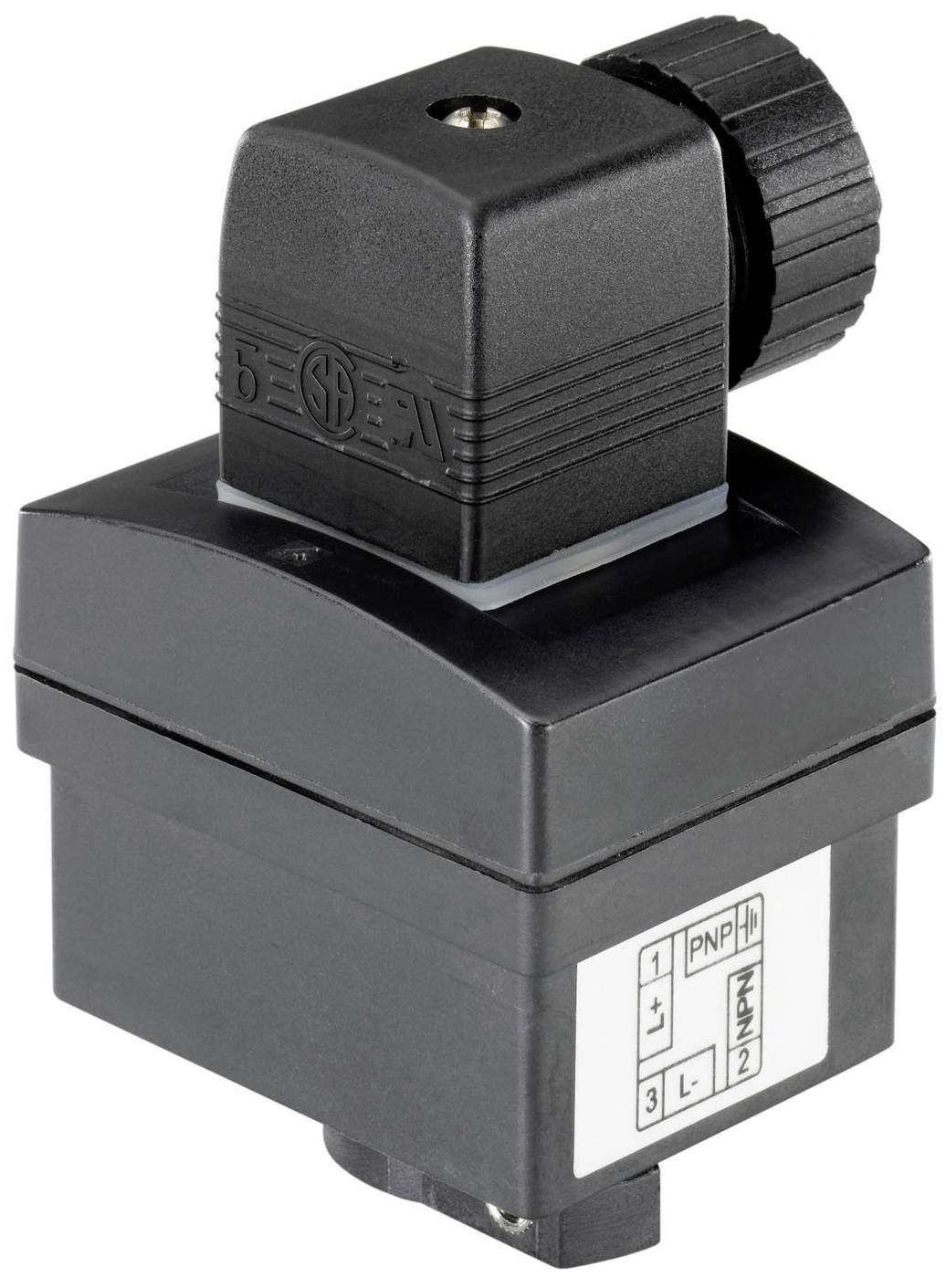

A black rectangular electrical sensor or switch with the label 'PNP 1' on the side, against a white background.

Image similar

Type

SE30

Connector

Plug

Media temperature (min.)

-15 °C

Max. media temperature

100 °C

IP rating

IP65

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Pressure & Temperature - Temperature Medium min -15 °C.
Pressure & Temperature - Temperature Medium max. 100 °C.
Pressure & temperature - ambient temperature min: -15 °C.
Pressure & temperature - temperature Surroundings max. 60 °C
Inputs/outputs - output 1 digital type: Transistor
Inputs/outputs - output 1 digital transistor contact free 0.1 A
Inputs/outputs - output 1 digital transistor Connection NPN: Yes
Inputs/outputs - output 1 digital transistor Connection PNP: No.
Inputs/outputs - output 2 digital type: Transistor
Inputs/outputs - output 2 digital transistor Connection NPN: No.
Inputs/outputs - output 2 digital transistor Connection PNP: Yes
Inputs/outputs - output 2 digital transistor contact free 0.1 A
Electrical connection - Electrical connection 1 Type: Connector picture Form A according to DIN EN 175301-803
Electrical connection - Electrical connection 1 Number: 1 pieces
Electrical connection - Electrical connection 1 Number of contacts: 4 pieces
Electrical connection - Device plug in the range of supply: Enclosed
Electrical connection - Device socket Art. No. - Type: 00572264 - 2518
Electronics - Fittings Electronics Interface: inLine
Functions - continuous measurement: Yes
Functions - Dosage: No.
Functions - Switch: No.
Functions - Local parameterization: No.
Functions - Parameterization disconnected: No.
Functions - Fixed parameterization: No.
Device Properties - Product Sub-Group: Flow
Device features - Setup device: Bayonet
Measured values - flow (volume): Yes
Measured Values - Flow (Ground): No.
Measured values - temperature: No.
Measured values - Density: No.
Measured values - concentration 1: No.
Measured Values - Accuracy Volume flow in relation to measured value: 1%
Protection class - protection class of measuring device (IP): IP65
Sensor type: Impeller/oval wheel
Sensor – impeller measurement principle Detection: Hall
Software / communication - display type: No display
Voltage - DC voltage min.: 12 V
Voltage - DC voltage max. 36 V.
Voltage - battery voltage: No.
Materials - Electronics housing Material Category: Plastics
Materials - electronics housing Material: PC (polycarbonate)
Materials - Electronic casing Cast: Resin
Materials - Cover Material: PC (Polycarbonate)
