Buy Bürkert SE35 423915 1 pc(s)

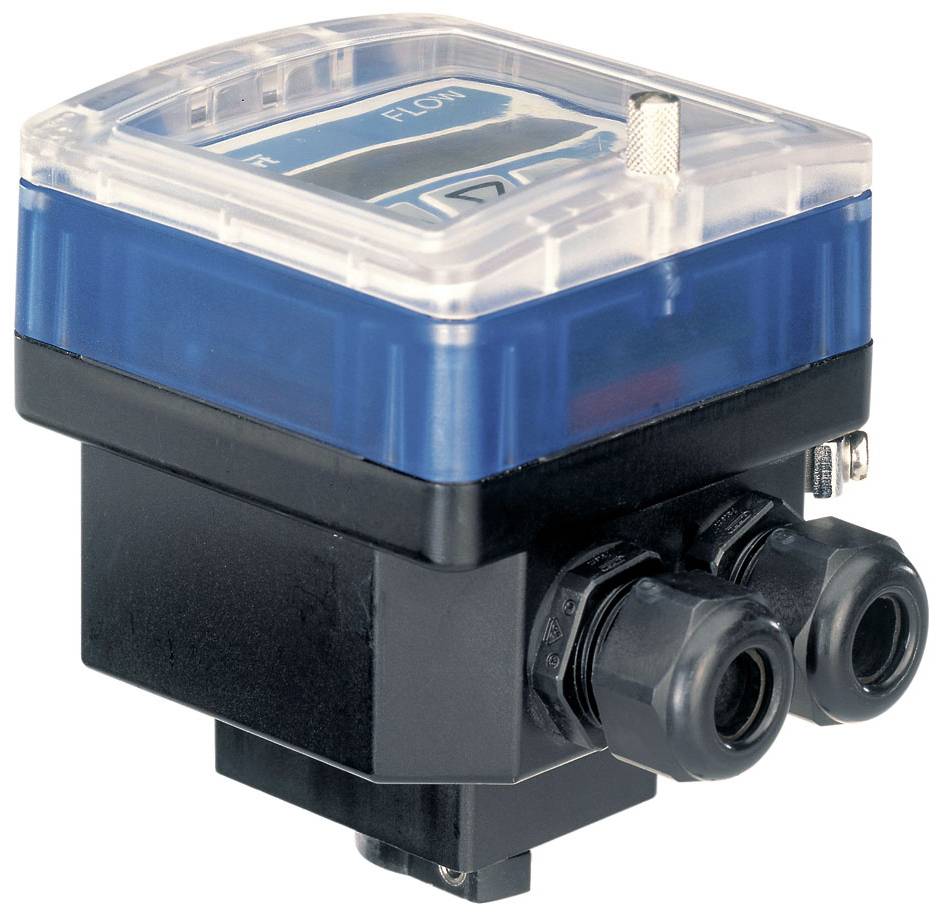

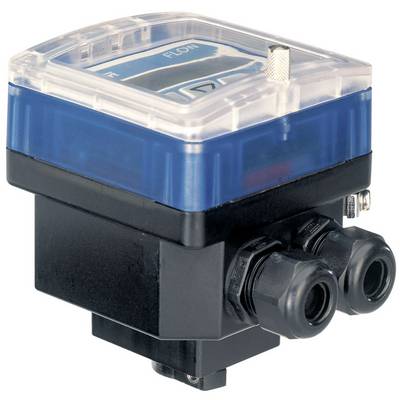

An electrical device with a blue casing and transparent lid, featuring two cable connections, likely for industrial applications.

Image similar

Type

SE35

Connector

Plug

Media temperature (min.)

-15 °C

Max. media temperature

100 °C

IP rating

IP65

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Seal material - Seal housing/cover material: NBR
Sealing material - sealing protection cover material: Silicone
Pressure & Temperature - Temperature Medium min -15 °C.
Pressure & Temperature - Temperature Medium max. 100 °C.
Pressure & temperature - ambient temperature min: -10 °C.
Pressure & temperature - temperature Surroundings max. 60 °C
Inputs/outputs - output 1 digital type: Transistor
Inputs/outputs - output 1 digital transistor contact free 0.1 A
Inputs/outputs - output 1 digital transistor Connection NPN: Yes
Inputs/outputs - output 1 digital transistor Connection PNP: Yes
Input / Output Analog Number: 1
In/outputs - output 1 type analogue Current 4-20 mA
Electrical connection - Electrical connection 1 Type: Connector picture Form A according to DIN EN 175301-803
Electrical connection - Electrical connection 1 Number: 1 pieces
Electrical connection - Electrical connection 1 Number of contacts: 4 pieces
Electrical Connection - Operational Supply Type: 2 conductors
Electrical connection - Device plug in the range of supply: Enclosed
Electrical connection - Device socket Art. No. - Type: 00572264 - 2518
Electrical connection - seal Electrical connection 1 Material: Neoprene
Electronics - Fittings Electronics Interface: inLine
Functions - continuous measurement: Yes
Functions - Dosage: No.
Functions - Switch: No.
Functions - Local parameterization: Yes
Functions - Parameterization disconnected: No.
Functions - Fixed parameterization: No.
Functions - Time Dosage: No.
Functions - Batch Dosing: No.
Functions - Advanced Diagnostics: No.
Functions - quantity counter: Yes
Device Properties - Product Sub-Group: Flow
Device properties - device design: Compact
Label - front film material Category: Plastics
Label - front film material: Polyester
Measured values - flow (volume): Yes
Measured Values - Flow (Ground): No.
Measured values - temperature: No.
Measured values - Density: No.
Measured values - concentration 1: No.
Measured Values - Accuracy Volume flow in relation to measured value: 1%
Protection class - protection class of measuring device (IP): IP65
Sensor type: Impeller
Sensor - impeller type: Magnetic
Sensor - Detection of flow direction: No.
Sensor - impeller measurement principle Detection: Coil
Software / communication - display type: Display
Voltage - DC voltage min.: 12 V
Voltage - DC voltage max. 36 V.
Voltage - battery voltage: No.
Materials - Electronics housing Material Category: Plastics
Materials - electronics housing Material: PC (polycarbonate)
Materials - screws Material: Stainless steel
Materials - Cover Material: PC (Polycarbonate)
Materials - Protective Cover Material: PC (Polycarbonate)
