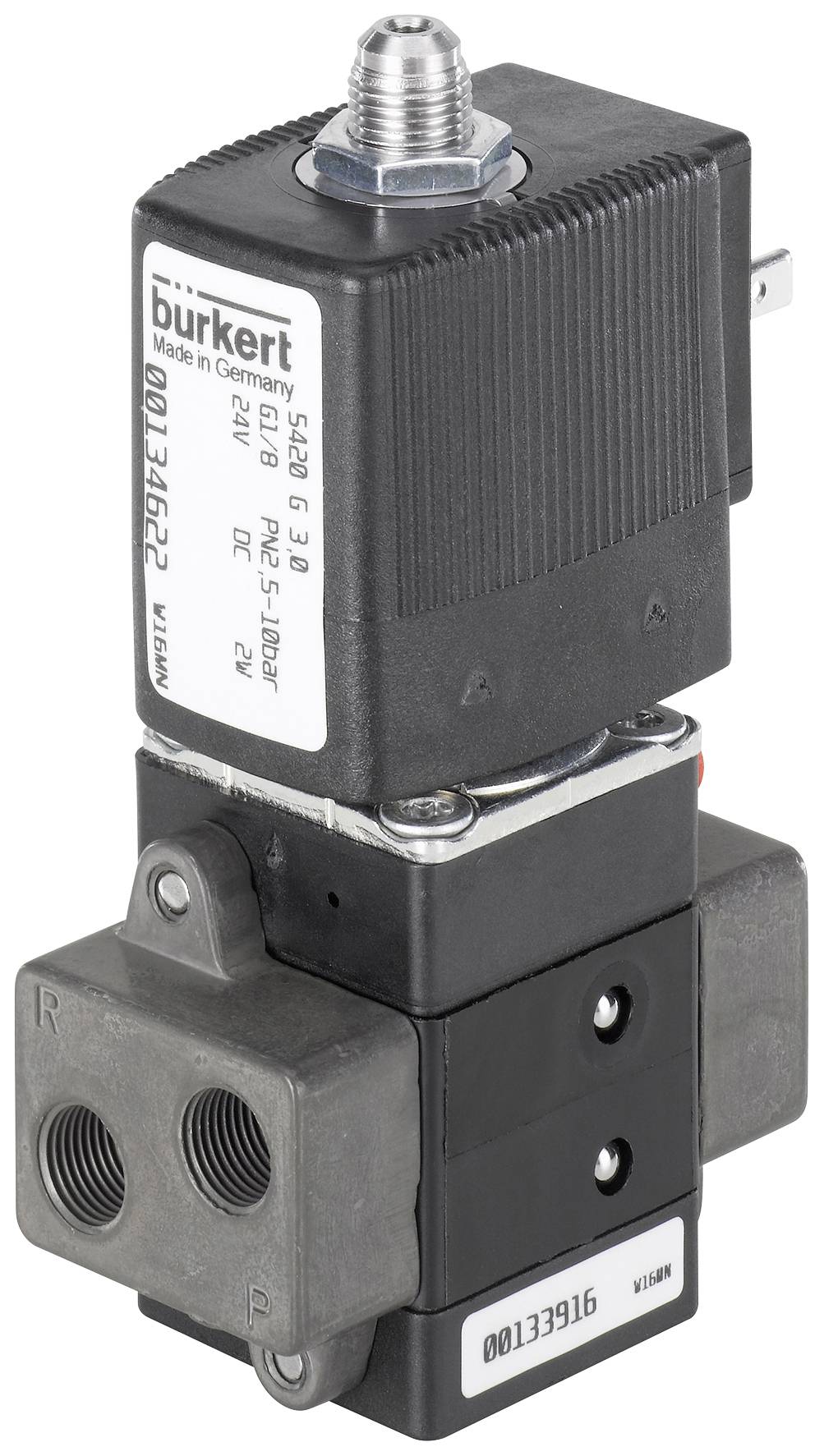

Bürkert Servo-operated valve 134634 5420 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
4/2-way pneumatic valve 5420
- Compact valveCoil over-pluggedExhaust air can be throttledHose, thread and flange connectionSeat valve version
Technical specifications
- Line connection (1 and 3) flange for connection plates
- Line connection (2) and (4) G1/8"
- Nominal width 3.0 mm
- Qnn value air 200 l/min
- Pressure range 2.5 - 10 bar.
- Voltage 024/DC
- Medium temperature -10 to +60 °C
- Ambient temperature +55 °C max.
- Opening time 30 ms (pressure build-up 0 to 90%)
- Closing time 20 ms (pressure build-up 0 to 90%)
- Electrical Power consumption 2 W
- Product type
Servo-operated valve
- Operating voltage
24 V DC
- Max. operating pressure
10 bar
- Enclosure material
Polyamide
- Media temperature (range)
-10 up to +60 °C
- Manufacturer part #
134634
- Sealant
NBR
- Function
4/2-way
- Weight
0.300 kg
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Features
Sleeve
- Width
122 mm
- Height
65 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-10 °C
- KV value
0
Documents & Downloads
Datasheet
Datasheet 1533561 Bürkert Servo-operated valve 134634 5420 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1533561 Bürkert Servo-operated valve 134634 5420 24 V DC 1 pc(s)
Description
The type 5420 is a pre-controlled 4-way seat valve with servo diaphragms.A minimum pressure difference of 2.5 bar is required for switching. ItValve can be mounted on two-channel connection plates with common pressure supply.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
