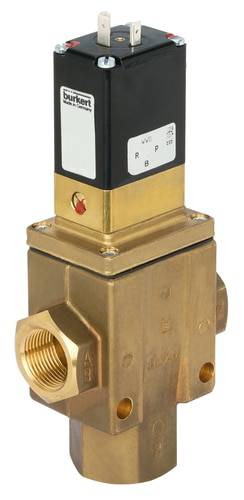

Image similar
Bürkert Servo-operated valve 361854 6430 220 V AC G 1/4 sleeve Nominal width (details) 65 mm OFF/NC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
3/2-way solenoid valve; servo piston
- Servo-controlled piston valve from DN8 to DN40
- Increased operational safety thanks to hinged anchor technology
- Service-friendly manual operation; energy-saving "kick and drop" or pulse coils
Technical specifications
- Drive type: Folding anchor
- Rated output: 8 W
- Main valve nominal diameter 1 (P): 8 mm
- Main valve nominal diameter 1 (inch): 5/16 in
- Number of pins: 2 + protective conductor
- Product type
Servo-operated valve
- Operating voltage
220 V AC
- Max. operating pressure
16 bar
- Enclosure material
Brass
- Connection
G 1/4 sleeve
- Media temperature (range)
0 up to +80 °C
- Manufacturer part #
361854
- Operating pressure (min.)
1 bar
- Operation
Manual operation: Rotary lever and button combined
Manual control position: Via line connection 1
- Sealant
Nitrile butadiene rubber
- Function
3/2-way
- Weight
900 g
- Max. media temperature
+80 °C
- Media temperature (min.)
0 °C
- Medium
Inert liquids
- Nominal width
65 mm
- Features
P port connector (G1/4)
- Width
90 mm
- Height
47 mm
- Length
143 mm
- QNn value
1022
- Switching frequency
opening min: 17 ms
open max. 25 ms
close min: 22 ms
close max. 30 ms
IP65
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
- Operating principle
OFF/NC
- KV value
0.95
Documents & Downloads
Datasheet
Datasheet 2275068 Bürkert Servo-operated valve 361854 6430 220 V AC G 1/4 sleeve Nominal width (details) 65 mm OFF/NC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2275068 Bürkert Servo-operated valve 361854 6430 220 V AC G 1/4 sleeve Nominal width (details) 65 mm OFF/NC 1 pc(s)
Description
Pilot-operated 3/2-way solenoid valve with servo piston, pressure connection closed without current, sleeve connection. For controlling high pressures at large nominal diameters with low power consumption, minimum pressure difference required 0.5 bar, oil-free operation possible. For neutral gases and liquids such as compressed air, water, hydraulic fluids based on water and mineral oil. A robust valve for controlling larger cylinders and actuators.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
