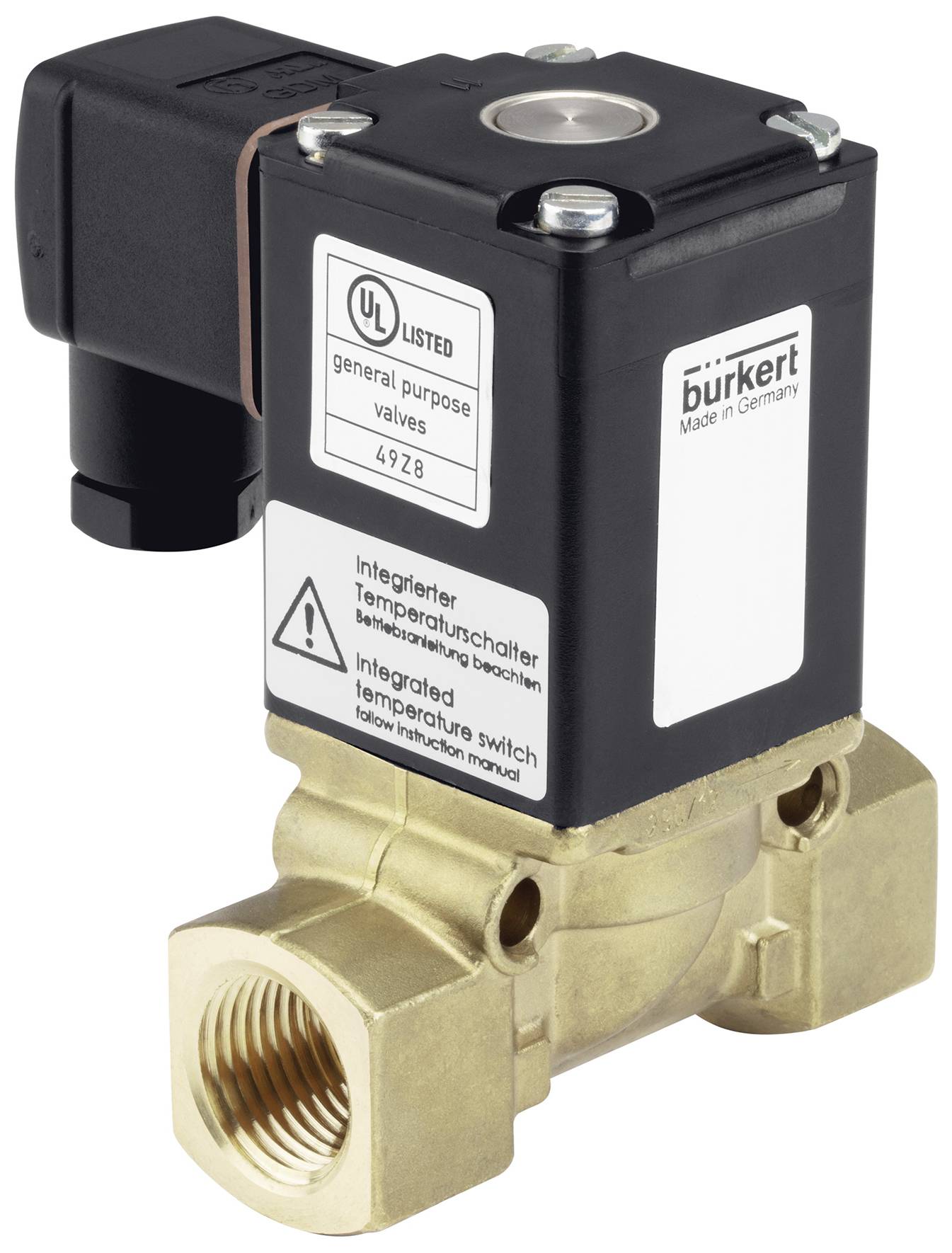

Bürkert Servo-operated valve 78662 0290 24 V G1 sleeve Nominal width (details) 25 mm 2/2 way 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2/2-way solenoid valve, servo-controlled
- Servo-controlled diaphragm valve up to nominal size DN50
- Fixed-coupled membrane opens without differential pressure
- Vibration-resistant, block screw-mounted coil system
- Energy-saving power reduction in all DC models
Technical specifications
- Material: Brass
- Seal material: EPDM (food quality)
- Nominal width 25 mm
- Line connection G 1 sleeve
- Special feature: Kick and drop coil with integrated temperature switch
- Voltage 24 volt
- Frequency: DC and AC (AC/DC)
- Missing Attributes: Seal materials with WRAS/WRC approval
- Medium temperature (degree C) (max): 90
- Ambient temperature (degree C) (max): 55
- Pressure (bar) (max): 16
- Medium temperature (degree C) (min): -30
- 2/2-way; closed at rest
- Power consumption: 100 watts suit, 9 watt operation
- QNN VALUE (L/MIN): 10700
- Duty cycle (%): 100
- Opening time (msec) (max): 250
- Closing time (ms) (max): 2000
- KV VALUE (M*3/H): 10.000
- Opening time (ms) (min): 100
- Closing time (ms) (min): 700
- Product type
Servo-operated valve
- Operating voltage
24 V
- Max. operating pressure
16 bar
- Enclosure material
Brass
- Connection
G1 sleeve
- Media temperature (range)
-30 up to 90 °C
- Manufacturer part #
78662
- Sealant
EPDM
- Function
2/2-way
- Max. media temperature
90 °C
- Media temperature (min.)
-30 °C
- Nominal width
25 mm
- QNn value
10700 l/min
- Max. ambient temperature
55 °C
- Operating principle
2/2 way
- KV value
10.000 m³/h
Documents & Downloads
Datasheet
Datasheet 3046850 Bürkert Servo-operated valve 78662 0290 24 V G1 sleeve Nominal width (details) 25 mm 2/2 way 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046850 Bürkert Servo-operated valve 78662 0290 24 V G1 sleeve Nominal width (details) 25 mm 2/2 way 1 pc(s)
Description
Valve 0290 is a servo-controlled diaphragm valve of the S.EV series. The valve opens without differential pressure. The opening process is supported by the fixed coupling of the diaphragm to the anchor. The integrated soft kick function ensures gentle opening of the material. Different diaphragm materials are available according to the applications. The housing offered is rounded off by stainless steel variants. The coils are crimped with a chemically high-resistance epoxy. For reducing the electrical power consumption a "kick and drop" electronics are cast in the coil for all DC versions. NEMA 4X is available on request.
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
