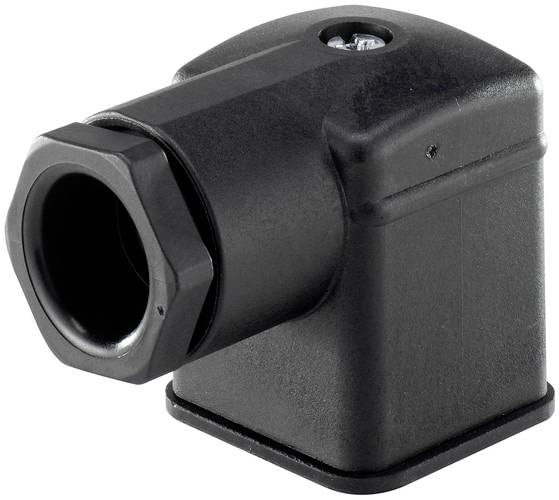

Bürkert Socket 314826 2518 Number of pins: 2 12 - 24 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Device socket according to DIN EN 175301-803
- With varistor
- VOLTAGE 12 - 24 V AC/DC
- Continuous current 10 A
- This text is machine translated.
Technical specifications
- Cable outlet: Insert can be offset by 4x90°
- Cable gland: M16x1.5 ready-to-use variants
- Contact resistance: ≤ 10 mΩ standard
- Power indicator: Yellow LED (if present)
- UL: All versions with clamp cage
- VDE: All versions except pole protection and free-wheeling diode with or without LED
- Connection type: Screw terminal
- Electrical connection: Plug-in terminals according to DIN EN 175301-803, shape A.
- Mating cycles: Max. 50
- Connectable wires: ᴓ 6.0 - ᴓ 8.0 mm, 0.205 - 1.5 mm²
- Connection cross-section 0.25 mm² - 1.5 mm².
- Product type
Socket
- Min. operating voltage
12 V
- Max. operating voltage
24 V
- Min. operating temperature
-30 °C
- Max. operating temperature
90 °C
- Operating temperature
-30 up to 90 °C
- Manufacturer part #
314826
- Operating voltage
12 - 24 V
- Permanent current (max.)
10 A
- Material (details)
Housing: Polyamide, contact material: Brass, sealing materials: NBR.
- Number of pins
2
- Number of contacts (details)
2
IP65/67
Documents & Downloads
Datasheet
Datasheet 2150145 Bürkert Socket 314826 2518 Number of pins: 2 12 - 24 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2150145 Bürkert Socket 314826 2518 Number of pins: 2 12 - 24 V 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
