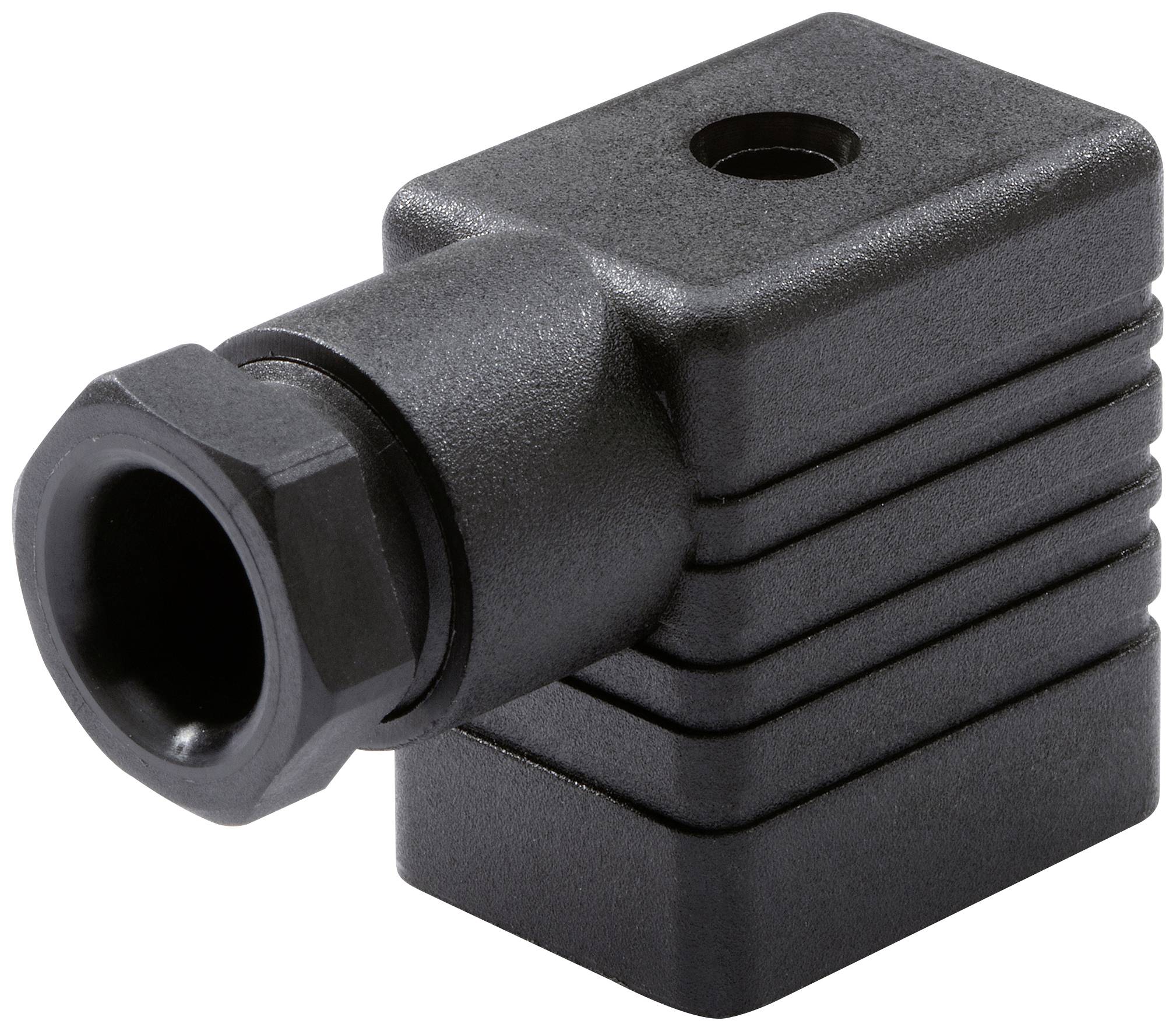

Bürkert Socket 423851 2507 Form B Number of pins: 3 12 - 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Device plug shape B Industry Standard
- Protection class IP 65
- Approvals UR, VDE
Technical specifications
- With LED and snubber diode
- 24 VDC
- Current max. 1.5 A
- Temperature range -40 to +90 °C
- Without cable
- Straight cable outlet
- Operating display LED, color red
- Electrical connection screw terminals max. 0.75 mm²
- Product type
Socket
- Min. operating voltage
12 V DC
- Max. operating voltage
24 V DC
- Min. operating temperature
-40 °C
- Operating temperature
-40 °C (min)
- Manufacturer part #
423851
- Wiring
With LED and varistor
- Operating voltage
12 - 24 V DC
- Permanent current (max.)
1.5 A
- Weight
0.024 kg
- Material (details)
Polyamide casing
- Number of pins
3
- Number of contacts (details)
2-polig + Schutzleiter
- Width
20 mm
- Length
51 mm
IP65
- Max. ambient temperature
+90 °C
- Min. ambient temperature
-40 °C
- Height
32 mm
Documents & Downloads
Datasheet
Datasheet 624450 Bürkert Socket 423851 2507 Form B Number of pins: 3 12 - 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 624450 Bürkert Socket 423851 2507 Form B Number of pins: 3 12 - 24 V DC 1 pc(s)
Description
Connector for connection of electrical components to shape B Industry Standard
This text is machine translated.
This text is machine translated.
Features
- Housing Material polyamide (transparent)
- Contact Material brass, silver-plated
- Flat seal NBR
- Cable diameter 4.5 - 7 mm
- Contact resistance ≤ 4 mΩ
- Protection class IP 65
- Number of pins 2-pin + protection conductor
- Cable gland PG9
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
