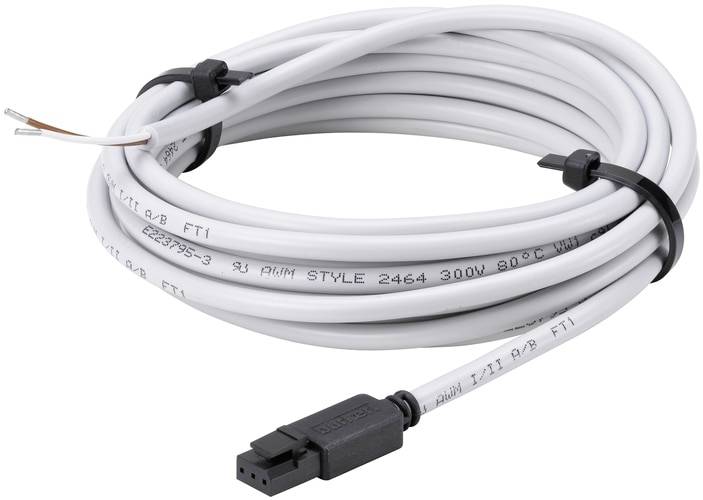

Bürkert Square plug 133486 2505 Number of pins: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Operating voltage 24 V
- Max. power 36 W
- Operating temperature -20 up to +80 °C
- Max. Current 1, 5 A
- Product type
Square plug
- Min. operating temperature
-20 °C
- Operating temperature
-20 °C (min)
- Manufacturer part #
133486
- Weight
0.020 kg
- Number of pins
2
- Number of contacts (details)
2-poliger
- Width
10 mm
- Length
3033 mm
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Depth
7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 627336 Bürkert Square plug 133486 2505 Number of pins: 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 627336 Bürkert Square plug 133486 2505 Number of pins: 2 1 pc(s)
Description
Features
- 2-pin square connector
- Cable material PVC oil-resistant
- Straight cable outlet
- Cable diameter 4 - 5 mm
- Sheath Color gray
- Cable length 3 m
- Wire cross-section 2 x 0.14 mm²
- 5.08 grid
- Protection class IP20 according to DIN VDE 0470
- This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
