Bürkert Square socket 644067 KOMP Number of pins: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

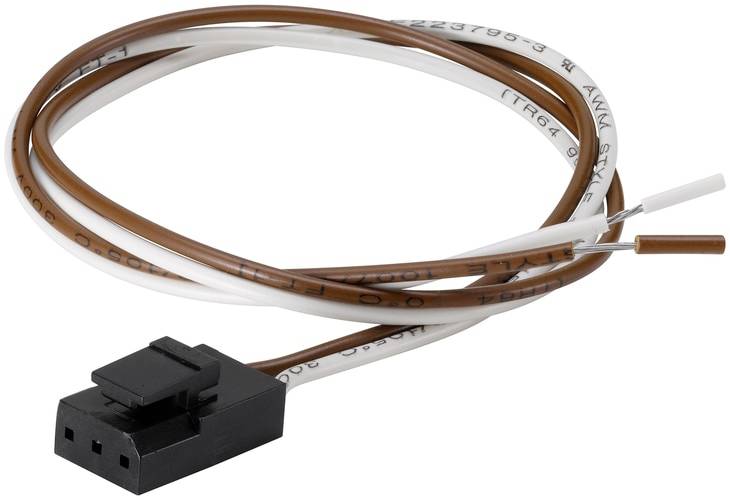

Square socket with 2 crimp contacts.
- Individual contacts for individual assembly
- This text is machine translated.
Technical specifications
- Operating voltage 24 V
- Max. permissible current load capacity of the contacts at 20°C: 2 A
- Operating temperature 0 to +55 °C
- Product type
Square socket
- Min. operating temperature
0 °C
- Operating temperature
0 °C (min)
- Manufacturer part #
644067
- Permanent current (max.)
2 A
- Weight
0.002 kg
- Number of pins
2
- Number of contacts (details)
2-polige
- Width
7 mm
- Length
13 mm
- Max. ambient temperature
55 °C
- Min. ambient temperature
20 °C
- Depth
6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 627337 Bürkert Square socket 644067 KOMP Number of pins: 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 627337 Bürkert Square socket 644067 KOMP Number of pins: 2 1 pc(s)
Description
Features
- 2-pin square socket
- 5.08 grid
- Protection class IP20 according to DIN VDE 0470
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
