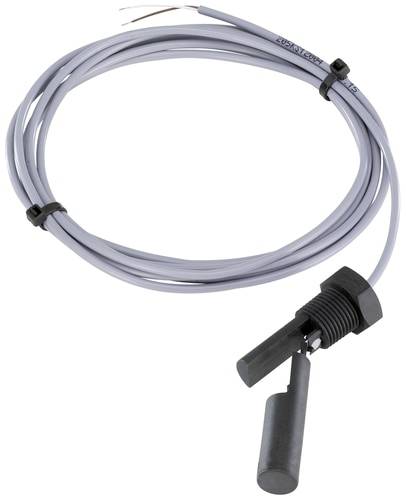

Bürkert TCL001 Float switch 250 V 1 breaker, 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Float switch
Contact type
1 breaker
1 maker
Material
Plastic
Switching voltage
250 V
Cable length
3 m
Datasheet (PDF)
Highlights & Details
Miniature float switch
- Switches for neutral and aggressive liquids
- NO contact/NC contact, changer
- Reed contact
- Vertical or horizontal installation
- Inserted strands (Type 8181) or cables (Type TCL001)
Technical specifications
- Material: Plastic
- Sealing material: Without sealing material or no specification
- Lead wire connection: RC 1/2 connector DIN EN 10226 (ISO 7-1)
- Switch function: Opener/closer
- Voltage 0-250 volt
- Frequency: DC and AC (AC/DC)
- Power supply lead 3 m
- Adjustment range: No specification
- Product type
Float switch
- Contact type
1 breaker
1 maker
- Material
Plastic
- Cable length
3 m
- Switching voltage
250 V
- Type
TCL001
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047703 Bürkert TCL001 Float switch 250 V 1 breaker, 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047703 Bürkert TCL001 Float switch 250 V 1 breaker, 1 maker 1 pc(s)
Description
Float switch with hermetically sealed reed contacts in the fixed switching part, switch actuation via magnets in the moving switching part, reed contacts as changeover contact or NO/NC implemented; for neutral and aggressive liquids; insensitive to dirt particles in the Medium; cylindrical thread for easy side installation in containers. Various versions are available depending on the material (PP or stainless steel), installation position (horizontal or vertical) and equipment (relay).
