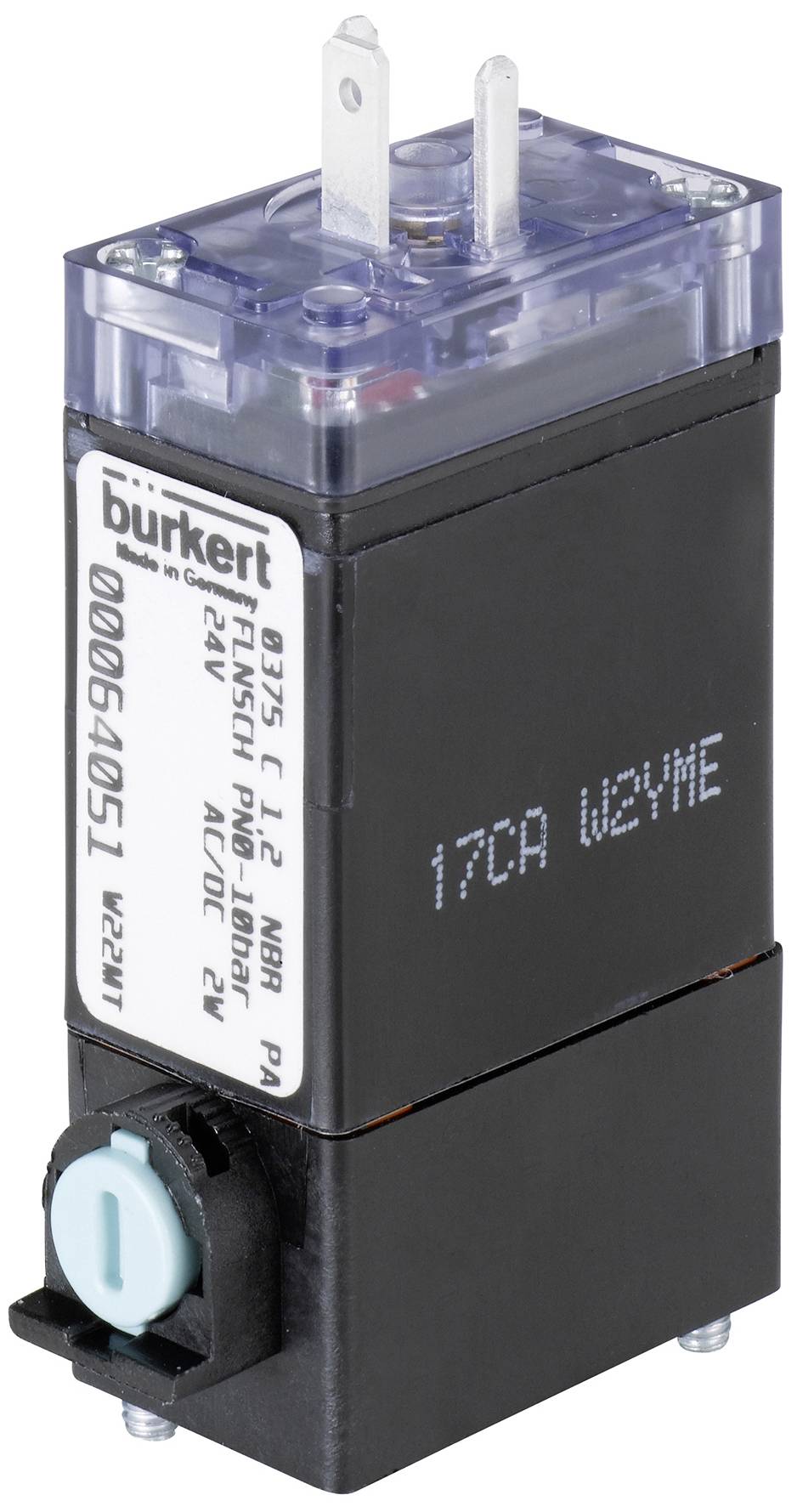

Bürkert Toggle valve 0375 55835 10 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Material: Polyamide
- Seal material NBR
- Nominal width 1.2 mm
- Line connection: Flange image: Type 0127/0375/6106/6126
- Special feature: Standard cable head
- Voltage 24 volt
- Frequency: DC and AC (AC/DC)
- Medium temperature (degree C) (max): 55
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 10
- Medium temperature (degree C) (min): -10
- 3/2-way; at rest output A de-energized
- Power consumption 2 watt
- QNN VALUE (L/MIN): 52
- Duty cycle (%): 100
- Opening time (msec) (max): 12
- Closing time (ms) (max): 22
- KV VALUE (M*3/H): 0.048
- Product type
Toggle valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
55835
- Max. operating pressure
10 bar
- Pressure range
10 bar (max)
- Operating medium
Gases
- Pipe Ø
1.2 mm
- Max. power consumption
2 W
- Type
375
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047667 Bürkert Toggle valve 0375 55835 10 bar (max) 1 pc(s)
Description
The direct-action rocker solenoid valves type 375 are particularly suitable for neutral gaseous media. The valves can be flange-mounted directly or mounted on single or multiple-connection plates. They can be used for dosing, filling, mixing and spreading.
