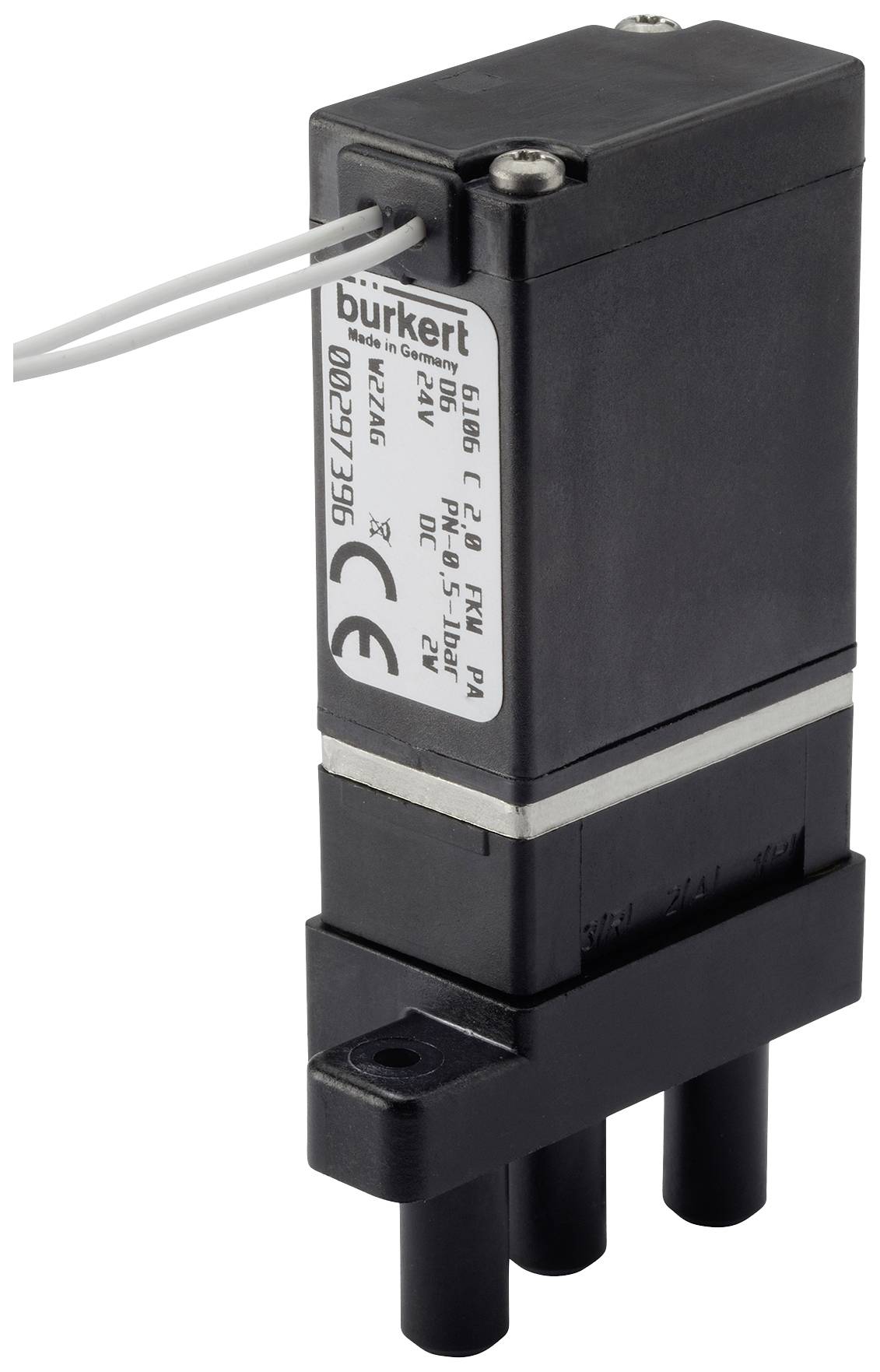

Bürkert Toggle valve 6106 140054 -1 up to 1 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - manual operation Material: PA (polyamide)
- Sealing Material - Seat Seal Material Category: Elastomers
- Sealing Material - Seat Seal Material: FKM (Fluoro Rubber)
- Sealing material - external sealing Material: FKM (fluororubber)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 55 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Pressure & temperature - nominal pressure at least -1 bar
- Pressure & temperature - nominal pressure max. 1 bar
- Electrical connection - Device socket in the range of supply: Not included
- Electrical connection - Electrical connection Type: Plug picture Form C according to DIN EN 175301-803
- Electrical connection - Electrical connection Position: Via cable connection 1
- Electrical connection - Electrical connection Number of contacts: 2 + protective conductor
- Electrical connection - Electrical connection Polarity: Irrelevant
- Device properties - rated mode/duty cycle: 100%
- Device properties - power reduction integrated: No.
- Equipment characteristics - valve design: Complete valve
- Device characteristics - drive type: Rocker
- Device properties - operation: Direct action
- Device Properties - Media Separation: No.
- Device features - switching function: On/off
- Equipment characteristics - width (nominal value): 16 mm
- Device features - opening switching time typically: 25 ms
- Equipment features - switching time typically close: 25 ms
- Device properties - Mounting (flange) Type: Metric screws
- Equipment properties - Mounting (flange) Material: Steel
- Nominal width (kV value) - QNn value (gas): 80 l/min.
- Nominal width (kV value) - valve nominal diameter: 2 mm
- Process/cable connection - cable connection 1 type: Flange
- Process/cable connection - cable connection 2 type: Flange
- Process/cable connection - cable connection 1 Flange: Bürkert-Flanch 16 x 27 Design D3Bürkert-Flanch 16 x 27 Design D3
- Process/cable connection - cable connection 3 type: Flange
- Process/cable connection - cable connection 2 Flange: Bürkert-Flanch 16 x 27 Design D3Bürkert-Flanch 16 x 27 Design D3
- Process/cable connection - cable connection 3 Flange: Bürkert-Flanch 16 x 27 Design D3Bürkert-Flanch 16 x 27 Design D3
- Voltage - battery voltage: Yes
- Voltage - voltage min. / nominal voltage: 24 V
- Voltage - voltage max. / nominal voltage 24 V
- Voltage - AC voltage: No.
- Voltage - DC voltage: Yes
- Coil (Kern) - Coil Switching LED: No.
- Coil (Kern) - Coil wiring Overvoltage protection: None
- Coil (Kern) - Coil Switching Rectifier: No.
- Coil (Kern) - Coil arrangement Pole protection: No.
- Coil (Kern) - Coil Switching Free-wheeling diode: No.
- Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
- Coil (Kern) - coil type: Block screwed
- Coil (Kern) - Material coil (envelope): PPS (polyphenylene sulfide)
- Coil (Kern) – rated DC 3.8 W.
- Coil (Kern) - Coil cover color: Black
- Materials - Fluid housing Material: PA (Polyamide)
- Operating principle - fluid line connection Number: 3
- Operation - Valve function Number of switching positions: 2
- T-valve function: Can be used universally - connection assignment 1 (P/NC), 2 (A/IN/OUT) and 3 (R/NO) as per application - can be used universally - connection assignment 1 (P/NC), 2 (A/IN/OUT) and 3 (R/NO) as per use
- Operation - Manual operation: Yes
- Mode of action - manual operation Type: Rotary lever
- Mode of action - manual actuation Locking: Yes
- Operation principle - manual operation of screw slot: Yes
- Operation - manual actuation Position: Via cable connection 1
- Approvals - nominal power 3.4 W
- Product type
Toggle valve
- Min. display range
-1 bar
- Display range (max.)
1 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
140054
- Max. operating pressure
1 bar
- Operating pressure (min.)
-1 bar
- Pressure range
-1 up to 1 bar
- Operating medium
Gases
- Width
16 mm
- Pipe Ø
2 mm
- Type
6106
- Max. media temperature
55 °C
- Media temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047103 Bürkert Toggle valve 6106 140054 -1 up to 1 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047103 Bürkert Toggle valve 6106 140054 -1 up to 1 bar 1 pc(s)
Description
The direct-action rocker solenoid valves type 6106 are particularly suitable for neutral gaseous media. The heat input into the Medium is minimal as the housing is also separated from the coil by a stainless steel plate. The valves can be flange-mounted directly or mounted on single or multiple-connection plates. They can be used for dosing, filling, mixing and spreading.
