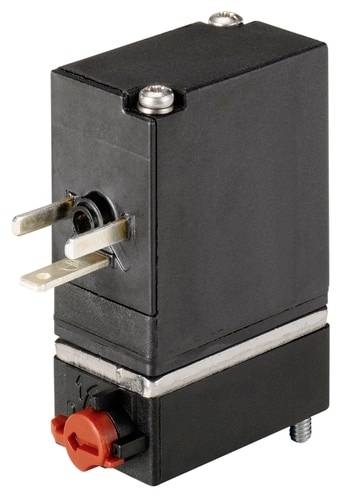

Bürkert Toggle valve 6106 277052 -1 up to 10 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Coil (Kern) - Coil size: Type-related specified
- Material: Polyamide
- Seal material:FKM
- Nominal width 1.2 mm
- Line connection: Flange image: Type 0127/0375/6106/6126
- Special feature: No manual operation
- Voltage 12 Volts.
- Frequency: Direct current
- Missing attributes: Coil only attached, screws loosely enclosed
- Medium temperature (degree C) (max): 55
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 10
- Medium temperature (degree C) (min): -10
- 3/2-way; at rest output A de-energized
- Power consumption 2 watt
- Pressure (bar) (min): -1
- QNN VALUE (L/MIN): 47
- Duty cycle (%): 100
- Pressure (max) at gas: 10
- TOTYPE 25
- TYP: 25
- Switching frequency 1000
- Product type
Toggle valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
277052
- Max. operating pressure
10 bar
- Operating pressure (min.)
-1 bar
- Pressure range
-1 up to 10 bar
- Pipe Ø
1.2 mm
- Max. power consumption
2 W
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
