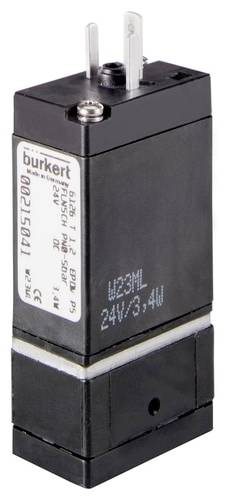

Bürkert Toggle valve 6126 139155 6 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Coil (Kern) - Coil size: Type-related specified
- Material: PPS (polyphenylene sulfide)
- Seal material: EPDM
- Nominal width 0.8 mm
- Line connection: Flange 16mm, 2-way, outlet outside
- Special feature: Plug contacts on the side
- Voltage 24 volt
- Frequency: Direct current
- Missing attributes: High-pressure version
- Medium temperature (degree C) (max): 50
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -5
- Pressure (bar) (max): 6
- Medium temperature (degree C) (min): -5
- 2/2-way; closed at rest
- Power consumption 3.4 watt
- QNN VALUE (L/MIN): 16
- Duty cycle (%): 100
- KV VALUE (M*3/H): 0.015
- Pressure (max) at gas: 6
- TOTYPE 25
- TYP: 25
- Product type
Toggle valve
- Operating temperature
-5 °C (min)
- Min. operating temperature
-5 °C
- Manufacturer part #
139155
- Max. operating pressure
6 bar
- Pressure range
6 bar (max)
- Pipe Ø
0.8 mm
- Max. power consumption
3.4 W
- Max. ambient temperature
55 °C
- Min. ambient temperature
-5 °C
- UKCA
not relevant
