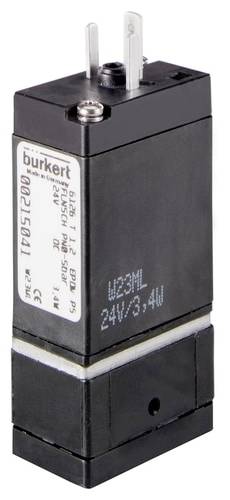

Bürkert Toggle valve 6126 158400 3 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Coil (Kern) - Coil size: Type-related specified
- Material: PPS (polyphenylene sulfide)
- Seal material:FKM
- Nominal width 1.6 mm
- Line connector: Flange image 16mm, 3-way
- Rectangular plug connection, 5.08 mm, 2-pin
- Voltage 24 volt
- Frequency: Direct current
- Missing attributes: High-pressure version
- Medium temperature (degree C) (max): 50
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): 5
- Pressure (bar) (max): 3
- Medium temperature (degree C) (min): 5
- 3/2-way; can be used universally
- Power consumption 3.4 watt
- QNN VALUE (L/MIN): 49
- Duty cycle (%): 100
- KV VALUE (M*3/H): 0.045
- Pressure (max) at gas: 3
- TOTYPE 25
- TYP: 25
- Product type
Toggle valve
- Operating temperature
5 °C (min)
- Min. operating temperature
5 °C
- Manufacturer part #
158400
- Dim
(Ø) 1.6 mm
- Max. operating pressure
3 bar
- Pressure range
3 bar (max)
- (Ø)
1.6 mm
- Pipe Ø
1.6 mm
- Max. power consumption
3.4 W
- Max. ambient temperature
55 °C
- Min. ambient temperature
5 °C
- UKCA
yes
