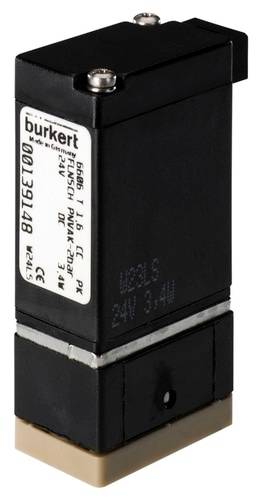

Bürkert Toggle valve 6606 154747 -1 up to 2 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Coil (Kern) - Coil size: Type-related specified
- Material: PEEK
- Seal material: FFKM
- Nominal width 1.6 mm
- Line connector: Flange image 16mm, 3-way
- Special feature: Plug contacts top
- Voltage 24 volt
- Frequency: Direct current
- Medium temperature (degree C) (max): 50
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): 10
- Pressure (bar) (max): 2
- Medium temperature (degree C) (min): 10
- 3/2-way; can be used universally
- Power consumption 3.4 watt
- Pressure (bar) (min): -1
- QNN VALUE (L/MIN): 49
- Duty cycle (%): 100
- KV VALUE (M*3/H): 0.045
- Pressure (max) at gas: 2
- TOTYPE 25
- TYP: 25
- Product type
Toggle valve
- Operating temperature
10 °C (min)
- Min. operating temperature
10 °C
- Manufacturer part #
154747
- Max. operating pressure
2 bar
- Operating pressure (min.)
-1 bar
- Pressure range
-1 up to 2 bar
- Pipe Ø
1.6 mm
- Max. power consumption
3.4 W
- Type
6606
- Max. ambient temperature
55 °C
- Min. ambient temperature
10 °C
Documents & Downloads
Datasheet
Datasheet 3047689 Bürkert Toggle valve 6606 154747 -1 up to 2 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047689 Bürkert Toggle valve 6606 154747 -1 up to 2 bar 1 pc(s)
Description
The direct-acting rocker solenoid valves of the type 6606 (2/2- and 3/2-way) fulfill the highest requirements in analysis technology. They have a minimum dead volume and a low-gap, easy-to-flush inner contour. The Medium comes in contact with the housing material and the FFKM seal only. The heat input into the Medium is minimal as the housing is also separated from the coil by a stainless steel plate. The valves are preferably used for dosing, filling, mixing and distributing small quantities in the analysis, medical and laboratory technology.
