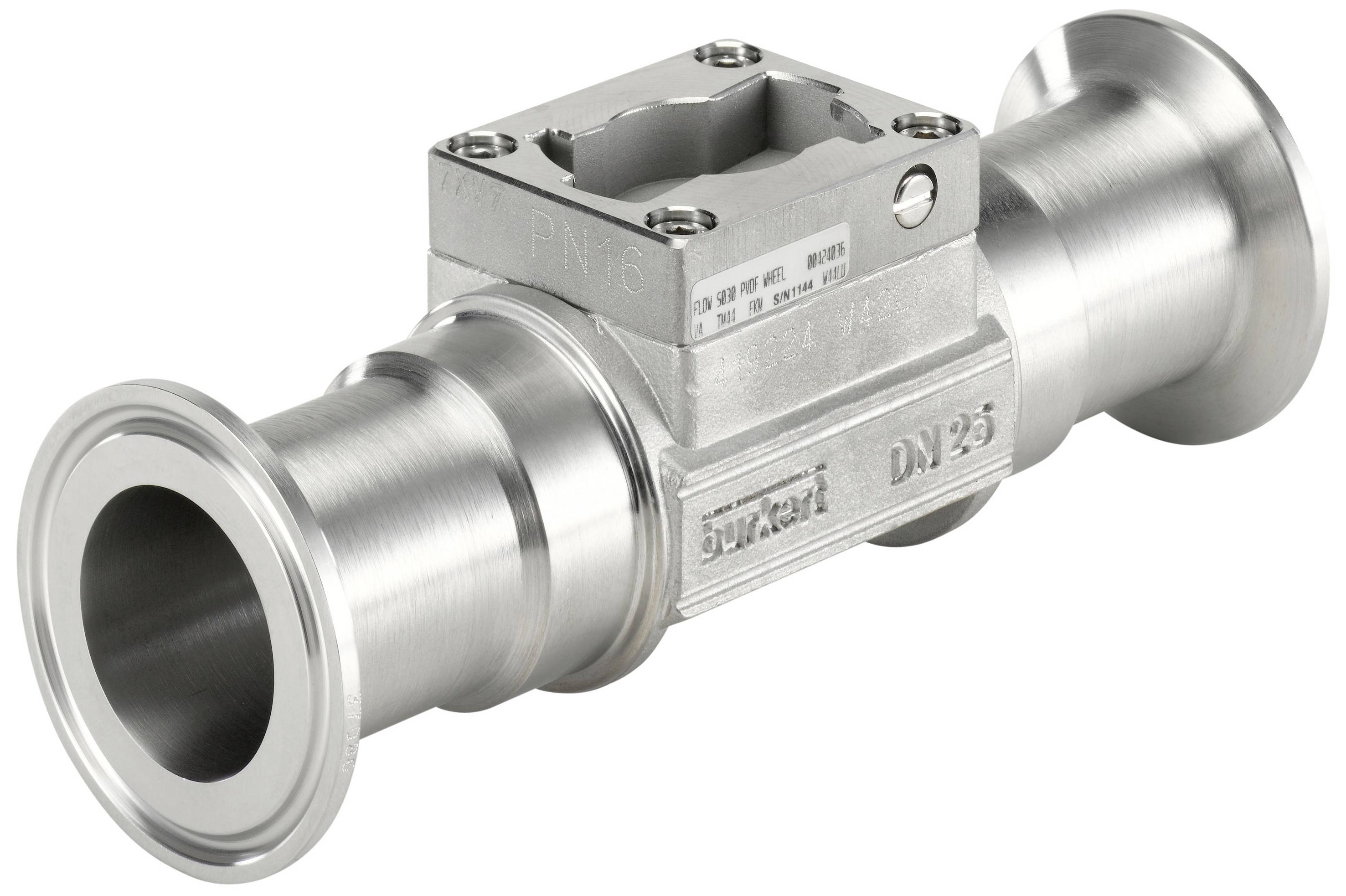

Bürkert Vane flow meter S030 443398 1 pc(s)
EAN:
Part number:
Item no:
Product type
Vane flow meter
Type
S030
Material
Stainless steel
Sealant
EPDM
Enclosure material
Stainless steel
Datasheet (PDF)
Technical specifications
- Sealing material - parts in contact with medium Sealing material: EPDM (Ethylene-Propylene-Diene-Rubber)
- Pressure & temperature - nominal pressure (DIN EN 1333): PN 16
- Pressure & Temperature - Temperature Medium min -15 °C.
- Pressure & Temperature - Temperature Medium max. 100 °C.
- Electronics - Fittings Electronics Interface: inLine
- Device Properties - Product Subgroup: Fitting
- Equipment characteristics - installation length 192 mm
- Medium & Calibration - Dynamic Viscosity min: 0 cp
- Medium & Calibration - Dynamic Viscosity max. 300 cp
- Measured values - measured value of volume flow min: 1,357
- Measured values - measured value of volume flow max.: 45,239
- Measured values - unit of measurement value: L/h
- Nominal diameter (kV value) - nominal diameter of measuring tube (DN): 40 mm
- Process/cable connection - cable connection 1 type: Clip
- Process/line connection - cable connection 1 external diameter (inch): 2 inch
- Process/line connection - line connection 1 Inner diameter (mm): 47.5 mm
- Process/line connection - line connection 1 size DN: DN 50
- Process/line connection - cable connection 1 wall thickness (mm): 1.65 mm
- Process/cable connection - cable connection 1 inch wall thickness: 0.065 inch
- Process/wire connection – cable connection 1 external diameter (mm): 50.8 mm
- Process/line connection - line connection 1 pipe standard 1: ASME BPE
- Process/line connection - line connection 1 Clamp: ASME BPE
- Process/line connection - line connection 1 Clamp external diameter (mm): 64 mm
- Process/line connection - line connection 1 DN inch: 2 inch
- Process/line connection - line connection material Category: Metals
- Process/line connection - pipe connection material: Stainless steel
- Sensor type: Impeller
- Sensor - impeller Material: PVDF (polyvinylidene fluoride)
- Sensor - impeller type: Magnetic
- Sensor - impeller Axle material: Ceramic
- Sensor - Storage Material Category: Technical ceramics
- Sensor - bearing material: Ceramic
- Materials - fitting material: Stainless steel
- Materials - Roughness inner tube: 1.6 µm
- Materials - Roughness tube outer: 3.2 µm
- Materials - measuring tube material: Stainless steel
- Operating principle - fluid line connection Number: 2
- Approvals - Factory test certificate 3.1 attached: Yes
- Product type
Vane flow meter
- Type
S030
- Material
Stainless steel
- Sealant
EPDM
- Enclosure material
Stainless steel
- Nominal diameter
40 mm
- Media temperature (min.)
-15 °C
- Max. media temperature
100 °C
- Max. operating pressure
16 bar
- Length
192 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3047270 Bürkert Vane flow meter S030 443398 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047270 Bürkert Vane flow meter S030 443398 1 pc(s)
Description
The type S030 sensor fitting has an integrated impeller for measuring the flow rate and is specially designed for operation with neutral, slightly aggressive, solid-free liquids.
The compact sensor fitting (S030) must be equipped with a Bürkert transmitter (type SE30, SE30 Ex, SE32, SE35, SE36 or 8611) which can be connected quickly and easily with a bayonet fitting.
The Bürkert "inLine Quarter-Turn" technology is a construction that ensures leak-free operation.
The transmission of the blade wheel revolutions to the transmitter is done contact-free by means of permanent magnets integrated in the blade wheel. The transmitter can be mounted or dismantled without opening the pipe. A running process does not need to be interrupted.
This text is machine translated.
The compact sensor fitting (S030) must be equipped with a Bürkert transmitter (type SE30, SE30 Ex, SE32, SE35, SE36 or 8611) which can be connected quickly and easily with a bayonet fitting.
The Bürkert "inLine Quarter-Turn" technology is a construction that ensures leak-free operation.
The transmission of the blade wheel revolutions to the transmitter is done contact-free by means of permanent magnets integrated in the blade wheel. The transmitter can be mounted or dismantled without opening the pipe. A running process does not need to be interrupted.
This text is machine translated.
