Buy Bürkert Vane flow meter SE32 434871 1 pc(s)

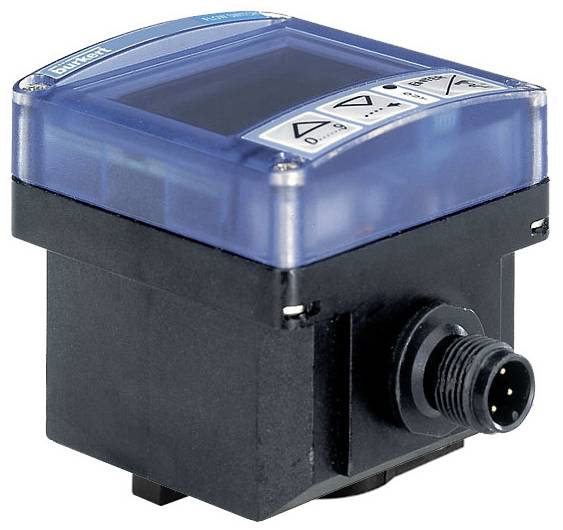

An electronic display device with a blue casing and three control buttons, mounted on a black base housing.

Image similar

Product type

Vane flow meter

Type

SE32

Connector

Plug

Outputs

PNP

Material

Polycarbonate (PC)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Sealing material - Seal housing/cover material: Silicone
Pressure & Temperature - Temperature Medium min 0 °C.
Pressure & Temperature - Temperature Medium max. 100 °C.
Pressure & temperature - ambient temperature min: 0 °C.
Pressure & temperature - temperature Surroundings max. 60 °C
Inputs/outputs - output 1 digital type: Transistor
Inputs/outputs - output 1 digital transistor contact free 0.7 A
Inputs/outputs - output 1 digital transistor Connection NPN: No.
Inputs/outputs - output 1 digital transistor Connection PNP: Yes
Electrical connection - Electrical connection 1 Type: Connector picture Form A according to DIN EN 175301-803
Electrical connection - Electrical connection 1 Number: 1 pieces
Electrical connection - Electrical connection 1 Number of contacts: 4 pieces
Electrical connection - Device plug in the range of supply: Enclosed
Electrical connection - Device socket Art. No. - Type: 00572264 - 2518
Electronics - Fittings Electronics Interface: inLine
Functions - continuous measurement: Yes
Functions - Dosage: No.
Functions - Switch: No.
Functions - Local parameterization: Yes
Functions - Parameterization disconnected: No.
Functions - Fixed parameterization: No.
Functions - Time Dosage: No.
Functions - Batch Dosing: No.
Functions - Advanced Diagnostics: No.
Functions - Quantity Counter: No.
Device Properties - Product Sub-Group: Flow
Device properties - device design: Compact
Label - front film material Category: Plastics
Label - front film material: Polyester
Measured values - flow (volume): Yes
Measured Values - Flow (Ground): No.
Measured values - temperature: No.
Measured values - Density: No.
Measured values - concentration 1: No.
Measured Values - Accuracy Volume flow in relation to measured value: 1%
Protection class - protection class of measuring device (IP): IP65
Sensor type: Impeller/oval wheel
Sensor - impeller type: Magnetic
Sensor - Detection of flow direction: No.
Sensor – impeller measurement principle Detection: Hall
Software / communication - display type: Display
Voltage - DC voltage min.: 12 V
Voltage - DC voltage max. 36 V.
Voltage - battery voltage: No.
Materials - Electronics housing Material Category: Plastics
Materials - electronics housing Material: PC (polycarbonate)
Materials - screws Material: Stainless steel
Materials - Cover Material: PC (Polycarbonate)
