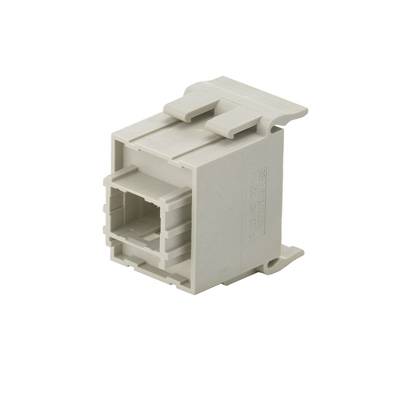

Bus module HDC CM ST M Weidmüller Content: 1 pc(s) Bus module
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Bus module
Type
HDC CM ST M
Manufacturer part #
1157970000
Connection
Connector
Highlights & Details
Bus module
- HDC CM ST M
Our service for you
Technical specifications
- Packaging type
Single
- Type
HDC CM ST M
- Product type
Bus module
- Manufacturer part #
1157970000
- Connection
Connector
- Content
1 pc(s)
- Material
Thermoplastic
- Suitable for
HD
- Max. temperature
70 °C
- Leading contact (PE)
No
- Height
37.5 mm
- Length
34 mm
- Width
22.8 mm
- Weight
22 g
22.8
37.5 m
V0
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 200978 Bus module HDC CM ST M Weidmüller Content: 1 pc(s) Bus module
Description
Bus module. Heavy-duty connectors, HDC insert, ConCept module. Universal and flexible - the solution for many applications. ConCept is a modular system, consisting of modules and frame. All together these a full-fledged application, which can be integrated easily into a HDC-housing. Thanks to the patented modular system can be used to create individual connector variations. Different modules for the Power, Signal, and data transfer will be supplemented by modules for pneumatic and SC and LC-lines. Action benefits has a robust, one-piece module frame design, either in polycabonat or die-cast zinc, and the integrated module free help with a variety of modules.
