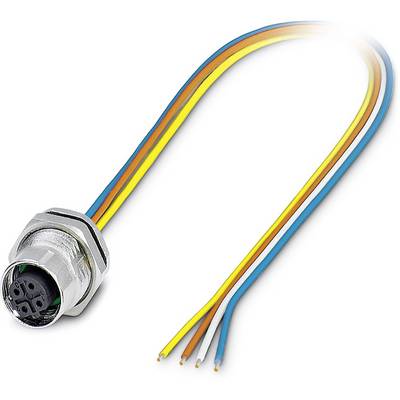

Bus system flat-type plug SACC-DSI-FSD-4CON-PG9/0,5 SCO 1551529 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M12 socket, built-in
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Technical specifications
- Type
SACC-DSI-FSD-4CON-PG9/0,5 SCO
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M12 socket, built-in
- No. of pins
4
- Cable length
0.50 m
- Jacket material
PUR
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
1.20 mm
- Connection
Open end cable
- Thread type connection side
M12
- Coding
D
IP67
- Manufacturer part #
1551529
- Content
1 pc(s)
Other
250 V
FALSE
Other
Other
85-85 °C
V0
Nickel
II
3
Straight
IP65/IP67
FALSE
4 A
100
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 716354 Bus system flat-type plug SACC-DSI-FSD-4CON-PG9/0,5 SCO 1551529 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 716354 Bus system flat-type plug SACC-DSI-FSD-4CON-PG9/0,5 SCO 1551529 Phoenix Contact
Description
Bus system flush-type socket, PROFINET, 4-pos., M12 SPEEDCON, D-coded, front/screw mounting with PG9 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm²
