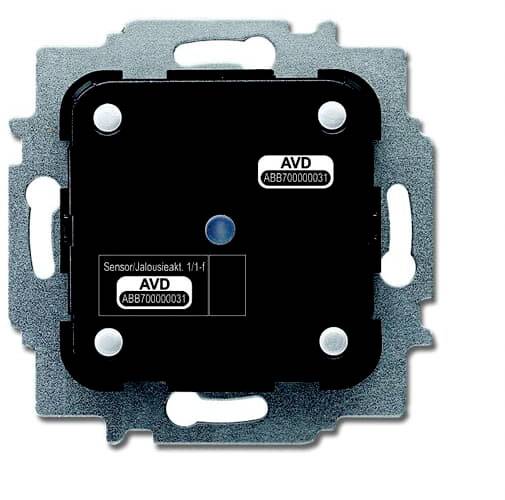

Busch-Jaeger 1x Insert Actuator free@home Multicolour 2CKA006220A0017 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Sensor/blind actuator 1/1-way
- Busch & Jaeger Switch Product Range
Technical specifications
- Width in division units: -
- Max. Switching capacity 920
- Bus module removable: -
- With LED display: Yes
- Number of inputs: 1
- With bus connection: Yes
- Bidirectional radio: -
- Bus system Powernet: -
- Other bus systems: free at home
- KNX bus system: -
- Bus system radio bus: -
- LON bus system: -
- KNX radio bus system: -
- Protection class (IP): IP20
- Min Depth of the appliance socket: 40
- Mounting type: Flush-mounted
- Switching function: -
- Max. Number of blind outputs: 1
- Switching current resistive: 4
- ACcurrent
- On-site/manual operation: Yes
- Type
Sensor/blind actuator 1/1-way
- Switch type function
Actuator
- Product type
Switch product range
- Switch type component
Insert
- Type series
free@home
- Factory colour
Multicolour
- Nominal current
4 A
- Switching capacity
920 W
IP20
- Content
1 pc(s)
- Weight
0.09
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2333717 Busch-Jaeger 1x Insert Actuator free@home Multicolour 2CKA006220A0017 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2333717 Busch-Jaeger 1x Insert Actuator free@home Multicolour 2CKA006220A0017 1 pc(s)
Description
For controlling blind or marquee motors.With integrated blind actuator.Blind function is also possible without prior programming (pre-configured).Configuration can be changed subsequently via the web interface (groups, scenes, …).Z.
